Focus on the field of micro powder grinding !
Processing ability: 1-30t/h
Fineness: 50-325 mesh
Max feeding size: 20mm

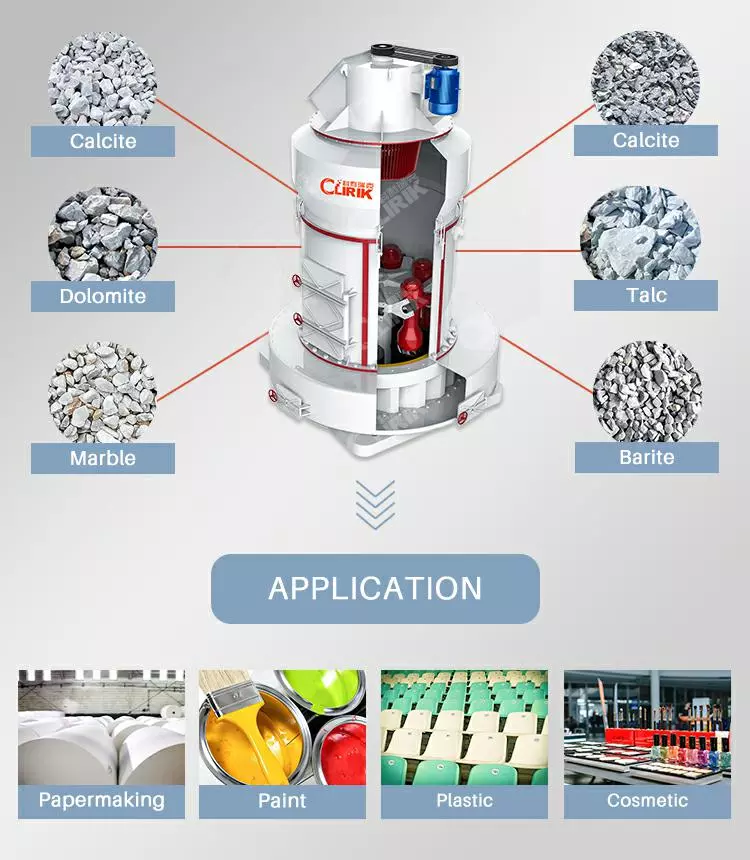

Range of application: Calcium Carbonate ，Limestone ，Kaolin，Gypsum ，Bentonite，Marble, Feldspar, Barite, Dolomite, Granite ...
Table of Contents

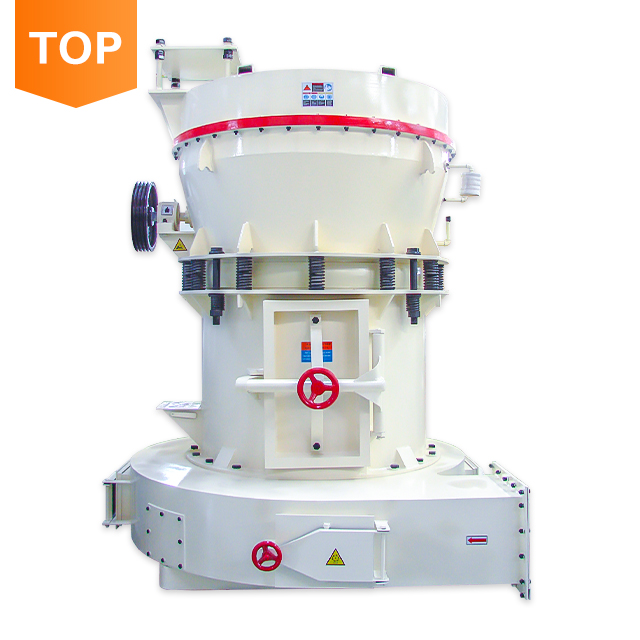

Calcium Carbonate Powder Raymond Mill is also called high-efficiency Raymond grinding mill and high-pressure suspension grinding mill. It is suitable for the grinding and processing of mineral materials in the fields of metallurgy, building materials, chemicals, mining, and other fields.
It is suitable for processing various non-flammable and explosive minerals with Moh’s hardness below 9.3 and humidity below 6%. Such as gypsum, talc, calcite, limestone, marble, potash feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, red iron oxide, iron ore, etc.
The fineness of the finished product is between 50-325 mesh. Through the joint action of the analyzer and the fan, it can meet the requirements of different users.
| Model | Roller | Ring | Feeding Size(mm) |
Finished Size(mm) |
Mill System Power(KW) |
Capacity (t/h) |
Overall Dimension (mm) |
|||
| Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter (mm) |
Height (mm) |
||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1.0-3.0 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12.0 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16.0 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8.0-20.0 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28.0 | 11550*9500*1050 |
1.The three-dimensional structure of the Calcium Carbonate Powder Raymond Mill has a small footprint and is strong in complete sets. From the block material to the finished powder, it forms an independent production system.
2.The fineness of the finished powder is uniform, and the sieving rate is 99%, which is difficult for other milling equipment to have.
3. The transmission device of the main machine of the calcium carbonate powder pulverizer adopts a closed gear box and belt wheel, with stable transmission and reliable operation.
4. The important parts of YGM Series Calcium Carbonate Powder Raymond Mill are made of high-quality steel, and the wear parts are all
made of high-performance wear-resistant materials. The whole machine has high wear resistance and reliable operation.
5.Calcium Carbonate Powder Raymond Mill full use of the jet-flow and optimized impeller structure can greatly improve the crushing and grading efficiency, thus greatly improving the production.
6. The electrical system adopts centralized control, the grinding workshop can basically realize unmanned operation, and the maintenance is convenient.

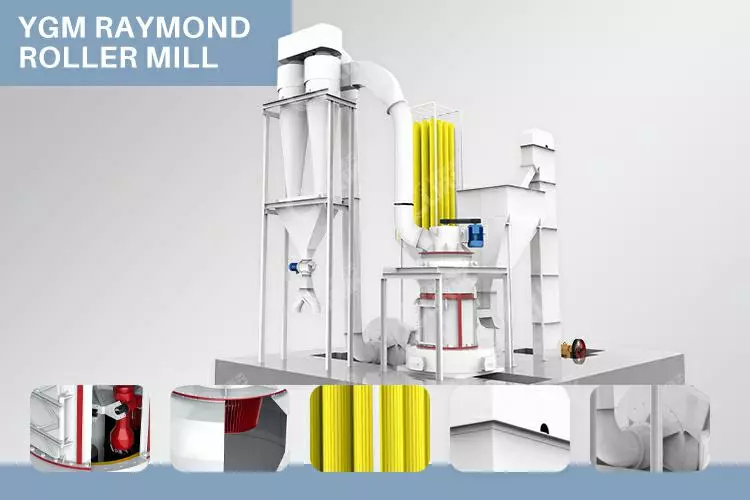

The standard configuration of Calcium Carbonate Powder Raymond Mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include a crusher, bucket elevator, vibrating feeder.
The raw material is crushed to less than 20 mm by the jaw crusher and then lifted to the storage hopper by the elevator. Then through the feeder, the raw materials are uniformly, quantitatively, and continuously sent to the main machine for grinding.
The ground powder is blown away by the airflow and separated by a classifier. The powder conforming to the fineness enters the cyclone collector through the pipe with the airflow and is separated and collected. Finally, the powder in the tube is discharged into finished powder.
The large cyclone collector is arranged at the upper end of the suction fan of the return duct, and the airflow of the whole system is a closed-loop, which flows and circulates under the state of positive and negative pressure.
The following is the customer case site of Calcium Carbonate Powder Raymond Mill
If you want to know more information, you can consult our online customer service or leave your email or Whatsapp. Our sales manager will reply to you with a detailed product, case list information and product quotation list within one hour.
Ethiopia gypsum powder production line used Clirik high-cost performance calcium carbonate powder raymond mill.
This customer case uses calcium carboante powder raymond mill to grind calcium carbonate into a fine powder (325 mesh).
The Myanmar customer needs to produce 125 mesh calcite powder used by Clirik calcite powder raymond mill.
This customer case uses talc powder raymond mill to grind talc into a fine powder (300 mesh).
If our YGM series Calcium Carbonate Powder Raymond Mill does not meet your needs, we have other series calcium carboante powder of mills for you to choose from.For more information, please contact us and our sales manager will send you a detailed product introduction and quotation list.
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
Purchase calcium carbonate powder raymond mill, we can provide you with the following services.
