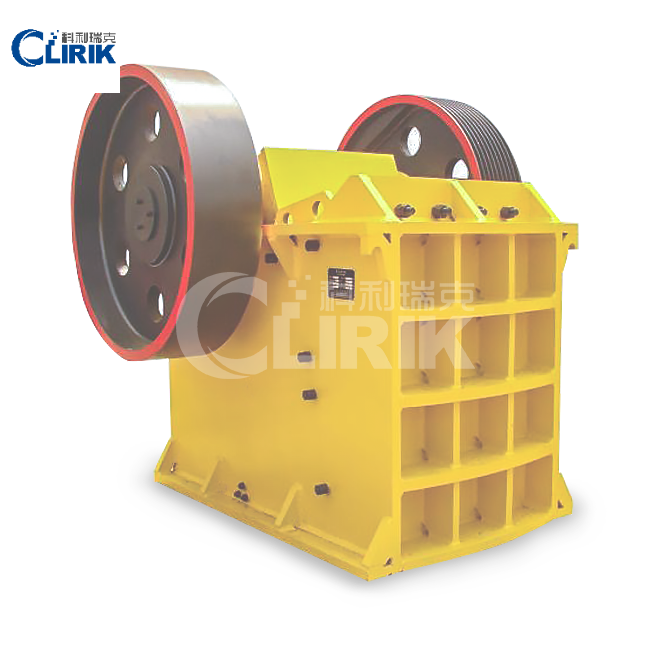

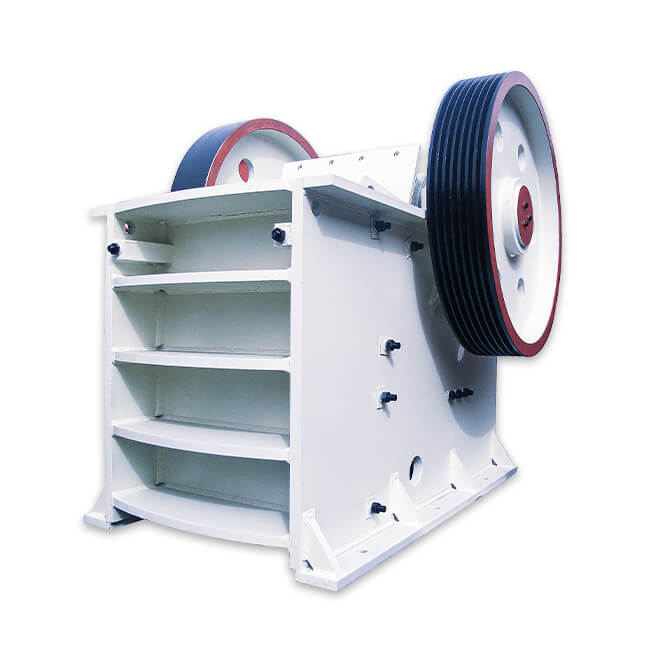

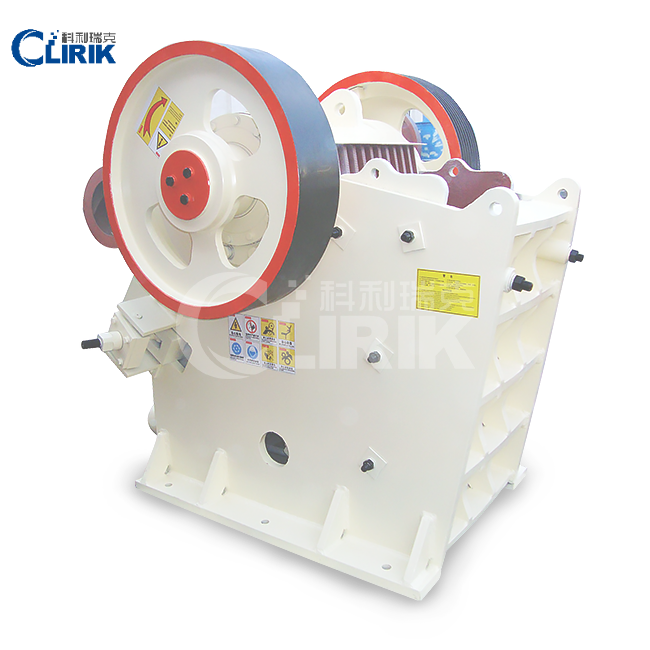

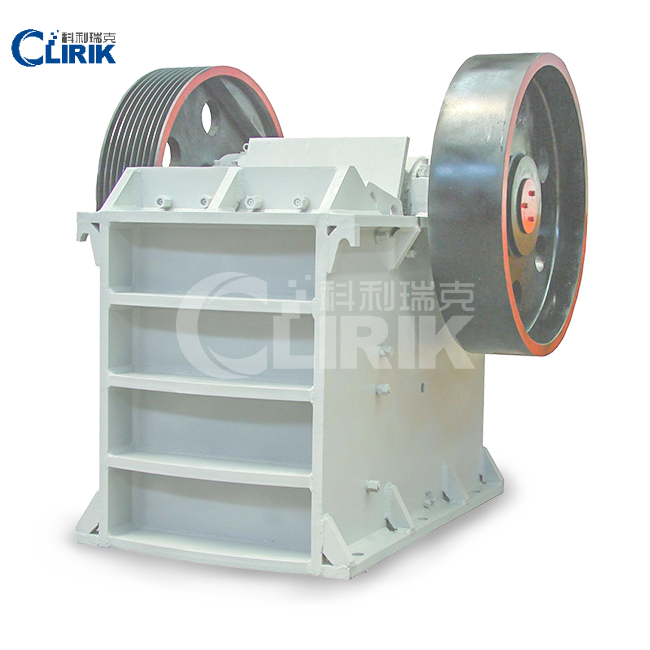

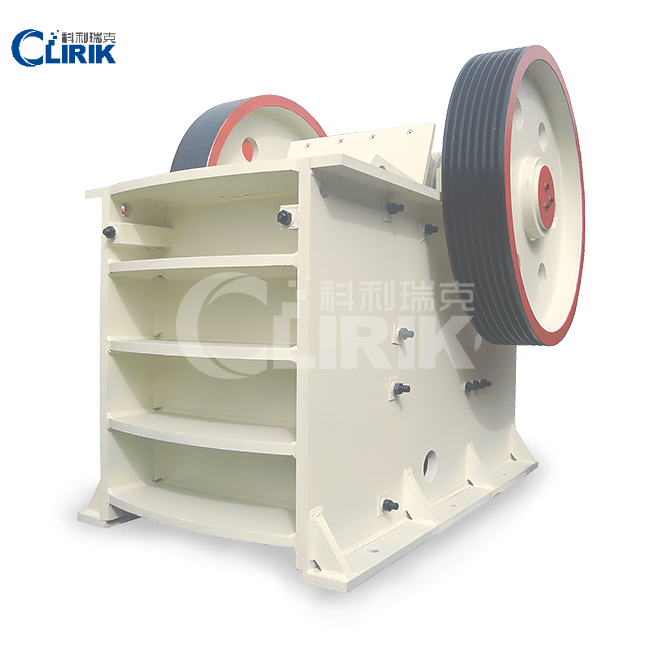

PE Series Jaw Crusher

Processing ability: 1-40 t/h

Fineness: 10-265 mm

Max feeding size: 125-850 mm

Range of application: Limestone、Calcite、Barite、 Dolomite、Marble、Talcum、Gypsum、 Kaolin...

  • +8613917147829

Prodcut  Overview

PE Series Jaw Crusher is mainly engaged in crushing various rocks and stones (such as limestone, calcite, barite, dolomite, potassium feldspar, marble, talc, gypsum, kaolin, bentonite, medical stone, phosphate, manganese ore, quartz, Activated carbon, glass, etc.) Coarse powder and small particles with comprehensive strength not higher than 320 MPa, widely used in metallurgy, mining, chemical industry, cement, coal, sand making, coal gangue, construction, refractory materials, ceramics and other industries.

Working Principle

1. The movable PE Series Jaw Crusher goes upward and downward through eccentric shaft when belt wheel are driven by the motor.

2. The angle between PE Series Jaw Crusher and bracket turns big when the PE Series Jaw Crusher goes upward,which pushes the PE Series Jaw Crusher plate to come closely to fixed jaw plate.

3. At the same time,materials are crusher with the movement of the PE Series Jaw Crusher.

4. When the PE Series Jaw Crusher goes downward,the angle between PE Series Jaw Crusher and bracket turns small. Under the force of spring and connecting bars,the PE Series Jaw Crusher plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushibf cavity.

5. With the continuous rotation of the motor,the PE Series Jaw Crusher crushes and discharges materials,which,in turn,realizes the goal of mass production.

Product Parameter

Product Specifications of PE Series Jaw Crusher

Model PEX-150 × 250 PEX-150 × 750 PEX-250 × 750 PEX-250 × 1000 PEX-250 × 1200 PEX-300 × 1300
Opening Size(mm) 250 × 150 750 × 150 750 × 250 1000 × 250 1200 × 250 1300 × 300
Feed Size(mm) 125 125 210 210 210 250
Output Open Range(mm) 10-40 18-18 25-60 25-60 25-60 25-105
Power(KW) 5.5 15 22-30 30-37 37 75
Capacity(t/h) 1-5 5-16 15-30 16-50 20-60 20-90
Size(mm) 875 × 758 × 850 1200 × 1500 × 1200 1667 × 1545 × 1020 1530 × 1992 × 1380 1900 × 2192 × 1430 2720 ​​× 1950 × 1600
Weight(t) 0.81 3.8 5/td> 7 8 11

Product Advantage

Jaw crusher

1 PE Series Jaw Crusher High crushing ratio, uniform particle size.

2 Point eclipse discharge opening adjustment devices, reliable and easy to adjust the range to meet the needs of different customers.

3 Safe and reliable lubrication system, easy to replace parts, low maintenance workload.

4 Simple structure, reliable function, low operating cost.

Other Products Offered

If our PE Series Jaw Crusher does not meet your needs, we have other series of mine mill for you to choose from. For more information, please contact us and our sales manager will send you a detailed product introduction and quotation list.

HGM Ultrafine Powder Grinding MILL
HGM Ultrafine Powder Grinding MILL

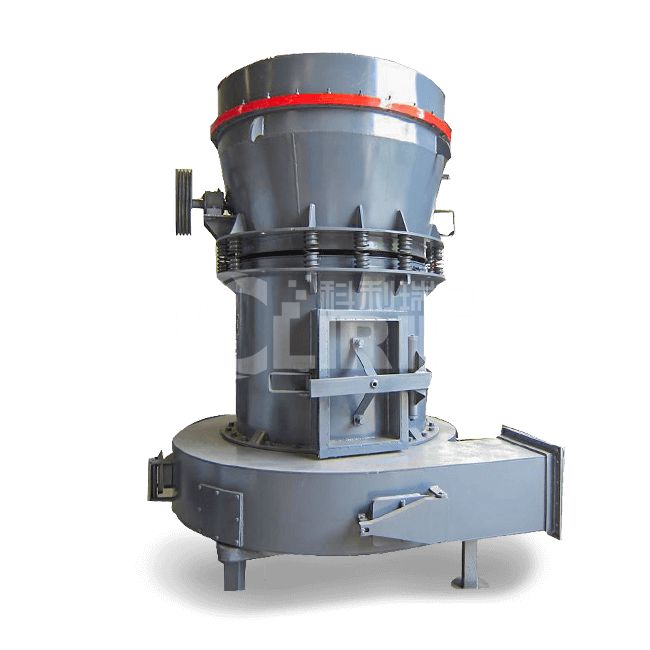

YGM Raymond Grinding Mill
YGM Raymond Grinding Mill

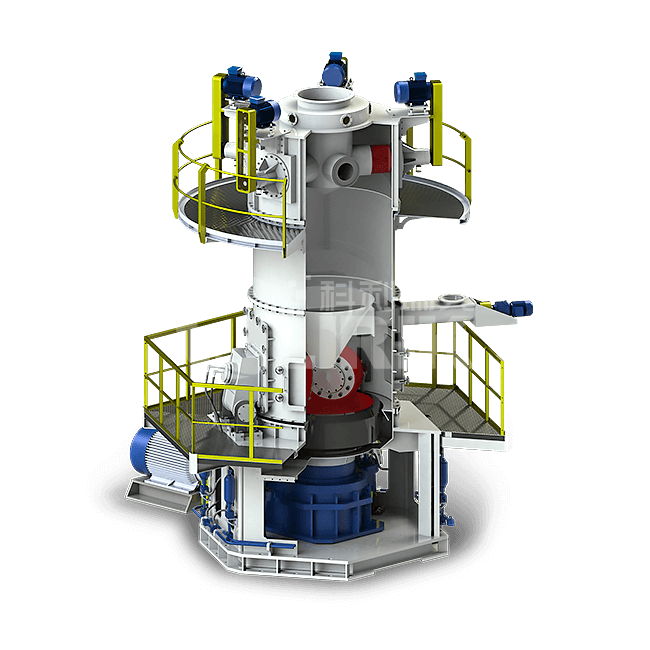

CLUM series ultrafine powder grinding mill
