Raymond Grinding Equipment

Processing ability: 1-30t/h

Fineness: 50-325 mesh

Max feeding size: 20mm

Range of application: calcium carbonate,barite, calcite, feldspar, talcum, marble, limestone, clay, glass,gypsum,kaolin,bentonite...

  • +8613917147829
  • sales@clirik.com

Product Overview of Raymond Grinding Equipment

The Raymond grinding equipment is one of the main products of our company. And as one of the biggest production bases in China, our company has produced Raymond grinding equipment with better WOM in the Raymond grinding equipment market. Raymond grinding equipment is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 6 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass. The fineness of the finished product can be adjusted from 50 mesh to 325 mesh according to requirements.

Raymond grinding equipment application

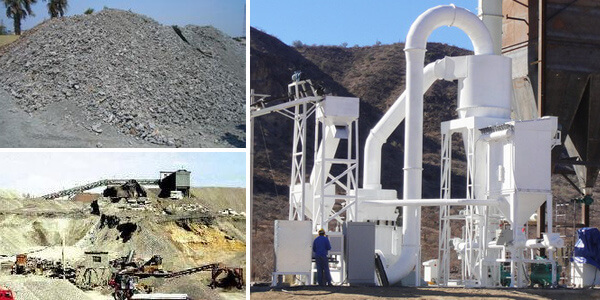

Raymond grinding equipment application

Product Parameter of Raymond Grinding Equipment

Model Roller Ring Feeding
Mill System
Dimension (mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 35.7 1.0-3.0 4300*3500*5100
YGM9517 4 310 170 950 170 25 0.613-0.033 72.65 2.1-5.6 7100*5900*7900
YGM1280 3 370 240 1170 240 20 0.613-0.033 145.15 4.5-12.0 9300*5600*8200
YGM1300 4 410 280 1270 280 20 0.613-0.033 202.15 6.5-16.0 9100*8200*8400
YGM1620 4 450 300 1500 300 20 0.613-0.033 322.2 8.0-20.0 12500*5700*10500
YGM1720 4 510 300 1720 300 35 0.613-0.033 450 10.5-28.0 11550*9500*1050

Working Principle of Raymond Grinding Equipment

Raymond Grinding Equipment complete set of equipment comprises: host, analysis machine, blower, cyclone separator, pipeline device, motor and other components, auxiliary equipment has Raymon mill, dustbowl hoist, electromagnetic vibration feeder, electric control cabinet, users can select flexibly according to the site situation.

Raymond Grinding Equipment has smashed the large block of raw material to the desired feed size, Conveying material to storage bin by Bucket Elevator, then the electromagnetic vibrating feeder evenly to host grinding cavity, into the grinding chamber of material between grinding roller and grinding ring grinding.

After grinding the powder fineness to meet the requirements through the airflow, into the big cyclone collector sorting collection pipeline. The finished product is then discharged through the discharge device.

The shovel system plays a crucial role in the working process of the host machine. It is located at the lower end of the grinding roller, the shovel knife and the grinding roller in the process of the same rotation of the material into the grinding roller between the roller ring, forming a cushion layer, the material layer by the grinding roller rotation of extrusion pressure will be crushed, so as to achieve the purpose of powder.

Technical Features of Raymond Grinding Equipment


The full use of the jet-flow and optimized impeller structure can greatly improve the crushing and grading efficiency, thus greatly improving the production.

2.High grading degree.

With the frequency conversion and grading adjustment technology, the Raymond grinding equipment has a stable and complete grading system and a special sealing measure, which can efficiently prevent the leaking of the fine particles, and the particle size can reach 500—6000monyh and the thinnest can reach 12000monyh.

3.Low wearing.

The crushing wearing parts and the impeller of the Raymond grinding equipment mainly adopt German technology. And with the optimized design of the inner cavity structure and anti-abrasion and allergy materials, the Raymond grinding equipment has made the lowest wearing parts and the highest purity.

Maintenance of Raymond Grinding Equipment

1.During the application of our Raymond grinding equipment, some personnel shall be arranged to take responsibility for management from beginning to end. The operators must be qualified with the required technical knowledge of operating grinding mills. Before the installation of this grinding mill, the persons related to the operation should receive technical training and fully understand the operating principle, performance and regulations of the Raymond grinding equipment.

Raymond Grinding Equipment

2.In order to guarantee the Raymond grinding equipment in a normal working state, a safety operation system for the Maintenance of the equipment must be established. Only in this way can the Raymond grinding equipment be guaranteed to have a long-term and safe operation. Meanwhile, it is necessary to have the required repairing tools, lubricant and grease, spare parts and accessories during the operation.

3.After some period of running, the Raymond grinding equipment should receive an examination and repair. The components vulnerable to worn out, such as grinding roller, grinding ring, relieving tool etc. should be repaired or replaced. Before and after the operation, a careful examination should be carried out for the connecting screws, bolts and nuts on the grinding rollers so as to find whether they are loose or sufficiently lubricated.

4.When their application time surpasses about 500 hours, all the rolling bearings in the roller sleeves of Raymond grinding equipment must be cleaned, and the damaged parts should be replaced. The oiling tool can be either a manual oiling pump or grease gun.

Other Products Offered

If our Raymond grinding equipment does not meet you need, we have other Ore material powder grinding mill for your choice.

HGM Ultrafine Powder Grinding MILL
HGM Ultrafine Powder Grinding MILL
CLUM series ultrafine vertical powder grinding mill
CLUM series ultrafine powder grinding mill
CLG Series Powder Surface Coating Machine
CLG Series Powder Surface Coating Machine


1. What kind of material can a Raymond grinding mill?

Calcium Carbonate;Limestone;Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others

2.What is the production capacity of Raymond mill in tons per hour?

Raymond mill production capacity 1-30 t/h.

3.What is the particle size of the final product of Raymond grinding equipment?

The fineness of the final product is 50-325 mesh.

4.What’s the price of a Raymond grinding equipment?

We have a variety of models of Raymond mill, please consult us for the specific price, and you can leave us your contact information: email, phone, wechat, Whatsapp. Our sales manager will recommend suitable grinding equipment according to your needs.

5. How long is the warranty time of Raymond grinding equipment?

Raymond Grinding Equipment host free warranty for 1 year。
Other parts that need to be replaced regularly (rollers, rings, turntables…) have been in full stock, you can contact us anytime if you need to change.

6. What payment methods do you have?

L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alibaba.com pay, Cash
