CLG Series Powder Surface Coating Machine

Processing ability: 40-7000 kg/h

Fineness: Optional

Max feeding size: Optional

Range of application: heavy light calcium carbonate、kaolin、 talcu、 wollastonite、mica、 white carbon black...

  • +8613917147829

Product Overview

CLG Series Powder Surface Coating Machine is a new type of powder modification machine designed by our company’s research and development technology department after many times of innovation, testing and design. It can not only improve the compatibility of both non-organic mineral stuff and organic high polymer, enhance binding force of interfaces, rise the mechanical strength and comprehensive ability, but also increase the stuffing ability of powder, save product cost and add special physical and chemical property to the product to some extent.

Product Application

The unique inner cavity design of the modifier has the functions of modification and depolymerization, which is applicable to modify various materials,It can reach excellent surface modificatins for such as heavy light calcium carbonate, kaolin, talcum, wollastonite, mica, white carbon black, zinc oxide, alumina, sillicon powder, graphite, magnesium-hydroxide, barium sulfate, illite claystone and pyrophylite, hexagonite and etc.

Poduct Parameter


Main Power

Blower Power

Speed of Shaft



Overall Dimension




5700 r.p.m







4500 r.p.m







2700 r.p.m











Working Principle

Working principle of CLG series powder surface coating machine:

The powder raw material is sent to the atomizing room above the main machine through the feeding conveying system. In the conveying process, the powder is heated and dried by the special heating device of the feeding conveyor. At the same time, the solid modifier is also heated and melted to the liquid state in the special heating container after being sent to the atomizing room through the conveying pipeline.

​The atomizing room is provided with two groups of nozzles, in which the group has four nozzles distributed in different positions on the wall of the atomizing room. Its role is to blow the powder material sent by the conveying system into mist. At this point, the raw material and the modification machine form mist. Due to the effect of two groups of nozzles from different directions of the jet flow, to be fully mixed, that is, into the host.

The main machine is composed of a high-speed rotating spindle, agitator bar, impact hammer and so on. The atomized material entering the main machine is affected by impact, friction and shear under the high-speed agitation of the agitator bar, so that the powder particles and the modifier are fully contacted and mixed. At this time, the powder material is fully coated and modified.

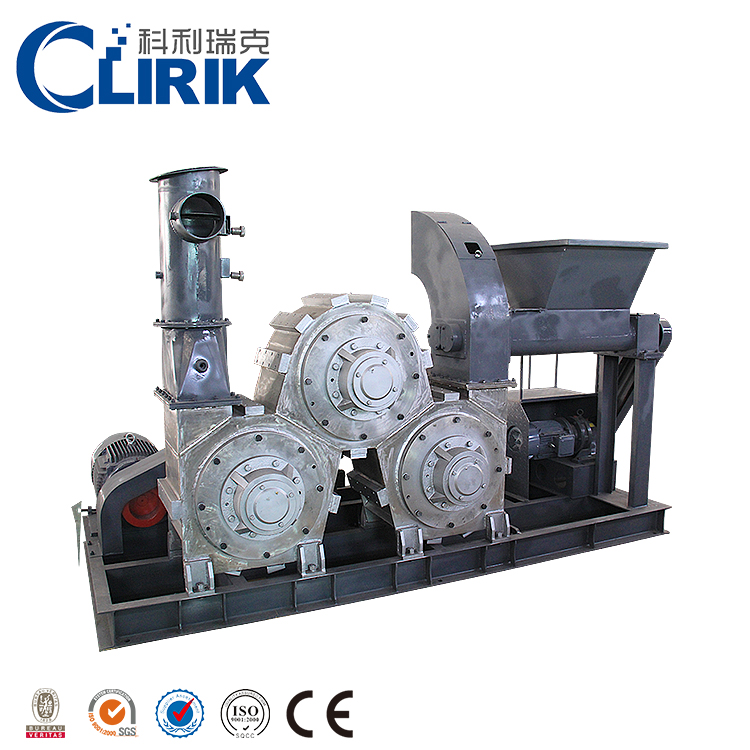

CLG series powder surface coating machine

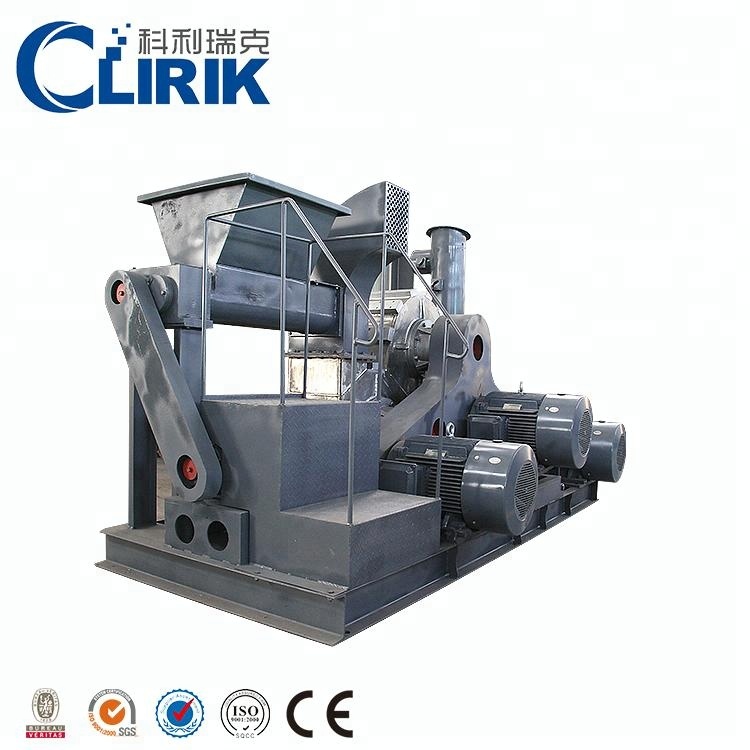

CLG series powder surface coating machine

Product Features

Performance characteristics of CLG series powder surface coating machine:

CLG series powder surface coating machine

1.The CLG series powder surface coating machine can continuously run production, large capacity, suitable for various scales of industrial production.

2.The utilization rate of the modified agent is high, the dosage is small, the powder coating rate and activation index is high, and the energy consumption is low.

3.The CLG series powder surface coating machine has both modification and breaking function, suitable for all kinds of fineness of the material, the false specific gravity of small, large bulk density ratio of the material such as white carbon black, mica powder, talc powder has a unique modification and activation effect.

4.Powder and reagent high-speed gas-solid eddy current mixing operation, high modification efficiency, basically does not destroy the original powder shape.

5.Material negative pressure operation, good sealing, dust does not leak, basic pollution-free, good operating environment, low labor intensity.

6.The completion of hot and cold machines, no separate heating and cooling system, simplify the operation.

7.Independent fluid, non-fluid dosing system, continuous stability and uniformity.

Other Products Offered

In addition to the CLG series powder surface coating machine, we have other mining grinding equipment for your choice. If you need to grind ultrafine powder, you can choose our HGM series ultrafine grinding mill, CLUM series ultrafine vertical roller mill, YGM series high pressure suspension grinding mill. If you need to grind coarse powder, you can choose our jaw crusher, hammer crusher, cone crusher…

Clirik mine mill recommended
Clirik mine mill recommended


Q: Are you a middle man or manufacturer?
A: Our Shanghai Clirik Machinery is a professional mining equipment manufacturer.

Q: How to get in touch with you?
A: You can leave your inquiry below this product, or you can call us 86-021-2023617.

Q: Where is your company?
A: We are in PuDong new area, HeQing twon, FuQing road, No. 19, Shanghai, China.

High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
