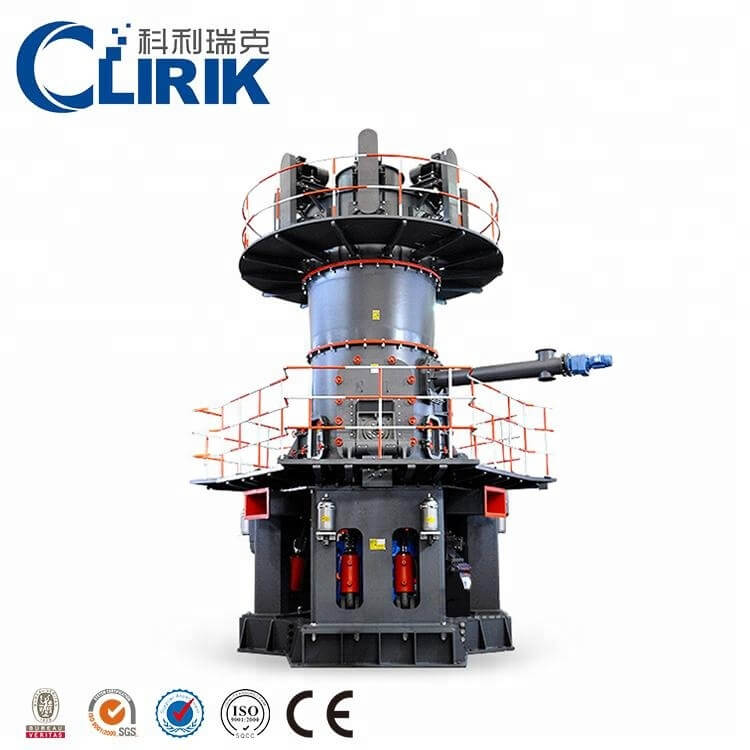

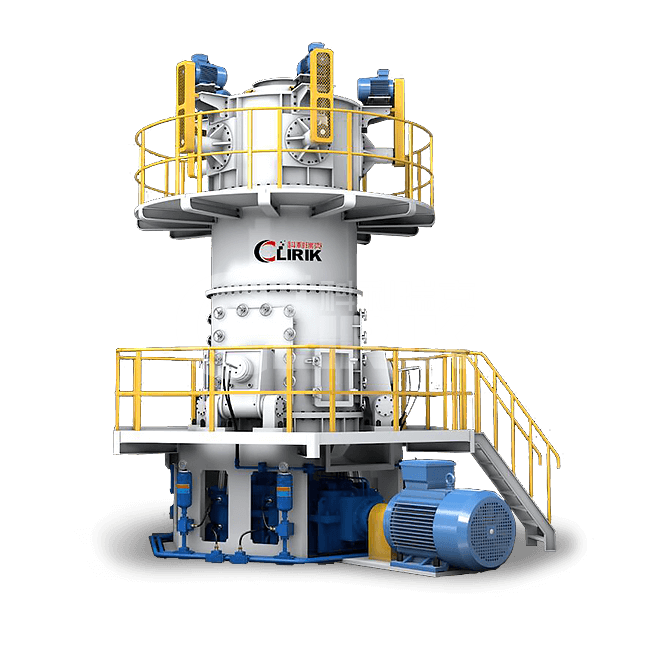

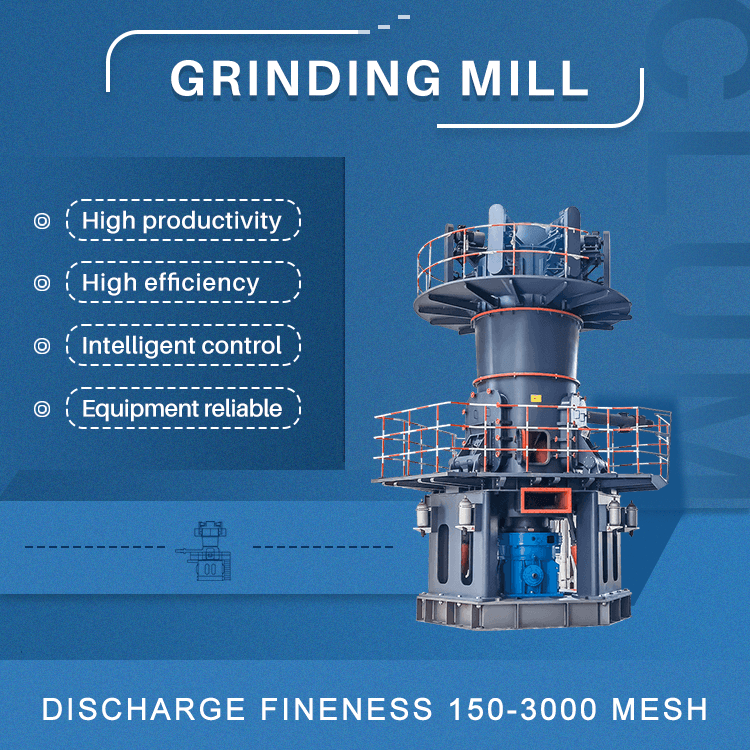

CLUM Series Ultrafine Vertical Powder Grinding Mill

Processing ability: 1-20 t/h

Fineness: 150-3000 mesh

Max feeding size: <10 mm

Range of application: Calcium carbonate,Gypsum, Limestone ,Quartz, Graphite, Calcite, Feldspar ,Fluorite ,Mica ,Dolomite Pyrophyllite ,Mineral phosphorite, Marble...

  • +8613917147829

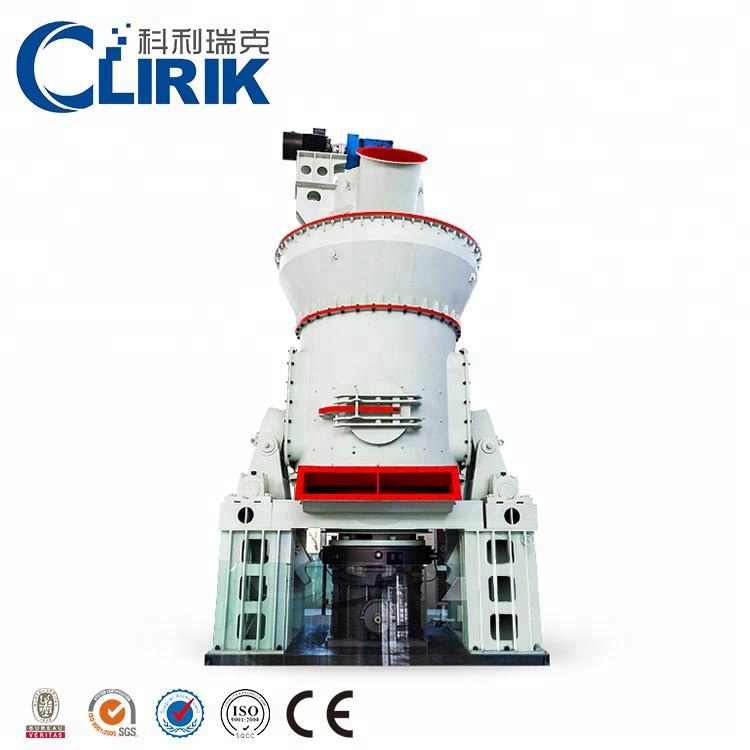

Product Overview of CLUM series ultrafine vertical powder grinding mill

CLUM Series Ultrafine Vertical Grinding Mill is the introduction of Taiwan and Germany super fine vertical grinding technology combined with Clirik their own years of grinding machine production experience self-developed out of a new type of industrial milling equipment that integrates grinding, grading, collecting and conveying.

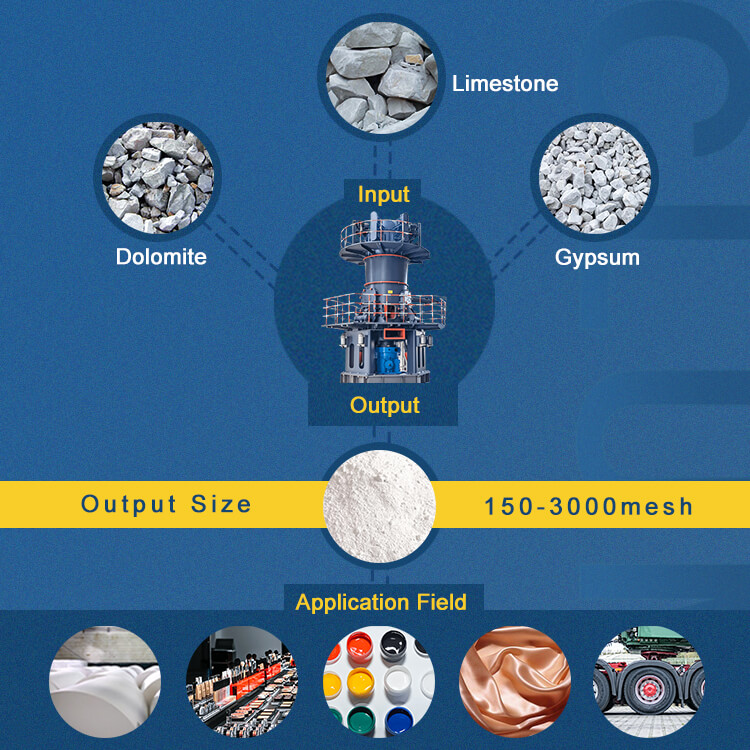

Application of CLUM series vertical superfine powder mill


CLUM Series Ultrafine Vertical Powder Grinding Mill are suitable for huge capacity producing, widely used in grinding non- flammable and non-explosive materials under 6 (the Moh’s hardness), such as quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.

CLUM series ultrafine vertical powder grinding mill can be widely applied in the industries of chemicals, metallurgy, non-metallic ores etc. In particular, it is outstanding in processing white superfine non-metallic ore powders, providing superior quality fillers and additives for paper making, coating materials, plastics, rubber, PVC, printing ink etc.

Working Principle of CLUM series ultrafine vertical powder grinding mill

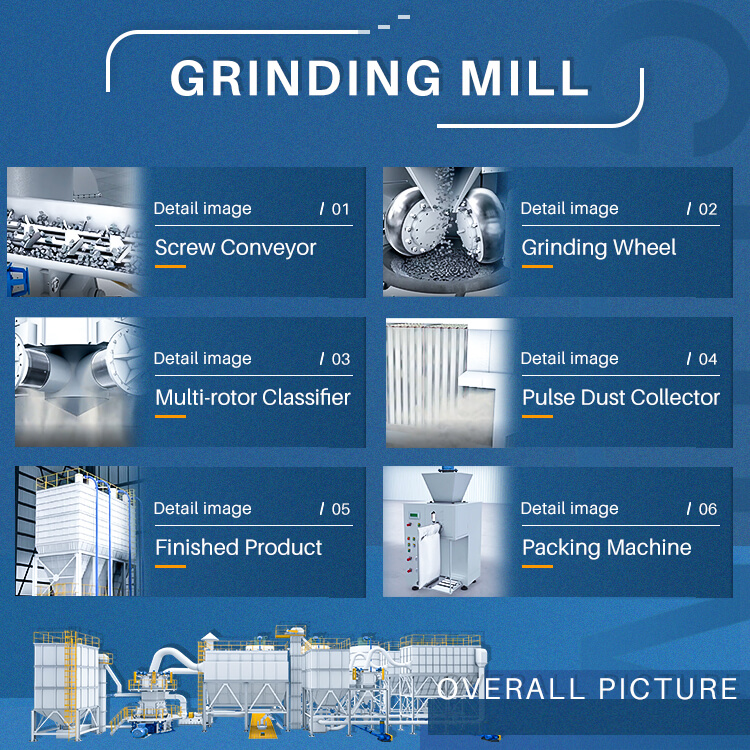

CLUM series ultrafine vertical roller mill mainly consists of the motor,reduction gear,grinding rollers,grinding plate,pressure-applying device,classifier,mill body.oil station ,and electrical system.

CLUM series ultrafine vertical powder grinding mill grinding plate is rotated by the main motor via the reduction gear. Meanwhile ,high pressure air enters the mill interior via inlet.

Materials then fall onto the center of the grinding plate in rotation by the screw conveyor feeder. Due to the centrifugal force,the materials evenly move from the center of the grinding plate towards its fringe. While passing across the track in the grinding plate,large blocks of materials are crushed and grinded directly by the grinding roller. the fine particles form the material bed ,owing to squeezing ,where the inter-particle crushing takes place until grind to the fine powder.

The fine powder continue to move towards the fringe of the grinding plate until they are taken away by strong air flow at the air ring. While the materials along with the air flow pass through the separator located above the grinding plate,the coarse particles return to the grinding plate for re-pulverization due to the action of the rotor blade,the fine particles along with the air flow leave the mill interior and are collected and discharged as finished powder product by the powder collector.

Working principle of CLUM series vertical superfine powder mill
Working principle of CLUM series vertical superfine powder mill

Product Advantage of CLUM series ultrafine vertical powder grinding mill

1.Low Operation Cost

Use the special anti-wear alloy materials for grinding roller and plate liner. Long service time for wear parts,low maintenance. The grinding curves of the roller shell and liner plate are uniquely designed, easy to form the stable material bed,low vibration,high product efficient.It is 20% higher than other equivalent vertical mill in capacity,saving 40% powder consumption compared with ball mill.

Advantages of CLUM Series Ultrafine Vertical Powder Grinding Mill

2.High Additional Value

Adopting the multi-rotor classifier,the final particles size for D97 5-45 micron are attainable.Equipped with the PLC frequency converter control system, the CLUM mill can produce 2 micron (20-70%) powder and adjust powder selection patterns according to client’ different requirements. it has greatly increased the final powder added value and application areas due to the advantages of narrow particle size distribution, unit form particles shape and controllable 2 micron content.

3.Safe And Reliable

The pressure being applied to the grinding roller auto-controlled by the PLC/DSC enables the accurate control of grinding pressure and highly efficiency without manual operation .The roller shell and grinding disc liner plate gap is dual protected by electronic and mechanical caging devices to avoid the heavy vibration and impact.Reducer box and lubricating system are equipped multiple inspection and cycle with double pumps. The sufficient lubrication and cooling of the bearings for the grinding roller is ensured therefore no excess of lubricating oil in the bearing chamber and no leakage could occur.Equipped with multiple intelligent protection devices the CLUM main unit can realize the continuous operation with stable,safe and high-efficient performance rather than stop running.

4.Environmental Friendly

Product Advantage of CLUM series ultrafine vertical powder grinding millThe roller and grinding disc do not touch each other directly,there does not have the metal impact noise in low vibration .Compared with ball mill the running noise is 20-25db lower which would not hurt human’s health. Hermetic seal ensures that the system operates under negative pressure.The final powder is conveyed to the final product silo without dust leakage.The environment is clean, meeting the national environmental protection requirements.

Product Parameter of CLUM series ultrafine vertical powder grinding mill

Main Configuration and Production
Model CLUM1425 CLUM1632 CLUM1736
Working Diameters(mm) 1400 1600 1700
Number of rollers(pieces) 3 3 3
Number of classifier(pieces) 5 7 7
Power of classifier(Kw) 5X15 7X15 7X(15~18.5)
Main unit power (Kw) 250 315 355
Blower power(Kw) 200 250 315
Feed size (mm) <10mm <10mm <10mm
Moisture of feeding material <3% <3% <3%
Less than 2μm=34%
11-14 13-17 15-19
Less than 2μm=46%
7-8 9-10 11-12
Less than 2μm=60%
3-4 / /
Material: based on calcite
Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments

Introduction Manufacturer of CLUM series ultrafine vertical powder grinding mill

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

What products can we offer you?

In addition to the CLUM series ultrafine vertical powder grinding mill, we can also provide you with HGM series ultrafine powder grinding mill, YGM series high pressure suspension grinding mill, jaw crusher, hammer crusher, cone crusher, TH bucket elevator, CLG series powder surface coating machine and other auxiliary equipment of ore production line.

Clirik mine mill recommended
Clirik mine mill recommended

What service can we offer you?

Purchase CLUM series super fine vertical grinder, we can provide you with the following services:

1.​ One year guarantee for the whole machine except for wear parts;

2.24 hours technical support by email;

3.​ Calling service;

4.​ User manual available;

5.​ Reminding for the service life of the wearing parts;

6.​ Installation guide for clients from both China and abroad;

7.​ Maintance and replacement service;

8.​ Whole process training and guidance from our technicians.

​The high quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
