Calcium Carbonate Ultrafine Vertical Powder grinding Mill

Processing ability: 1-20t/h

Fineness: 400-3000 mesh

Max feeding size: 10mm

Range of application: Calcium Carbonate,Calcite,CalciumCarbonate,Bentonite,Limestone,Graphite,Gypsum,Kaolin,Dolomite,Barite,Feldspar...

  • +8613917147829

Product Overview of Calcium carbonate ultrafine vertical powder grinding mill

Calcium carbonate ultrafine vertical powder grinding mill is a new type of superfine pulverizer integrating grading, conveying, secondary powder selection and finished product packaging.Is Shanghai CLIK after 5 years of efforts, combined with their own production of grinding mill experience, and the introduction of Taiwan, Germany ultra-fine vertical mill technology,Breaking through the low production capacity of traditional superfine powder machine, a set of pulverizers was designed and developed.

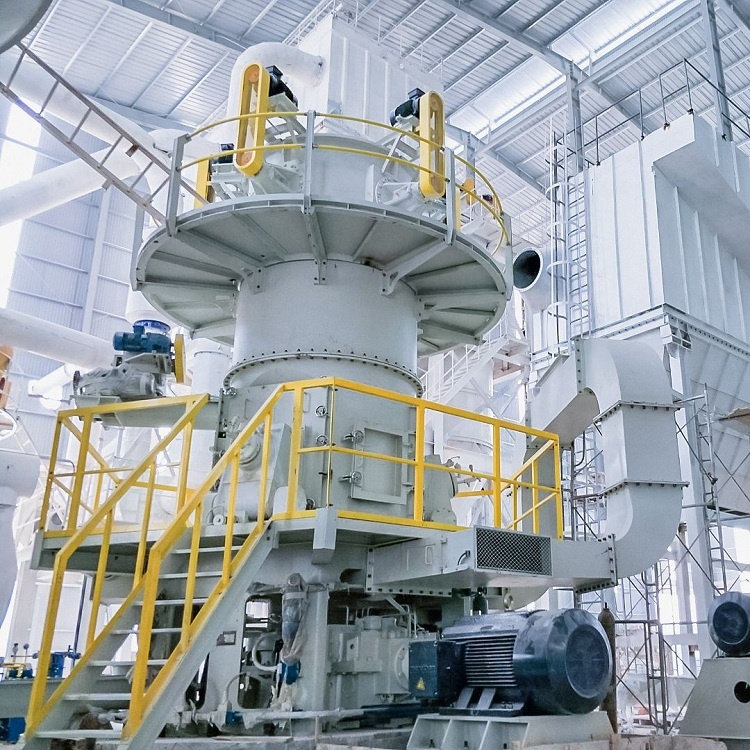

Calcium Carbonate Ultrafine Vertical Powder grinding Mill

Application of Calcium carbonate ultrafine vertical powder grinding mil

Calcium carbonate ultrafine vertical powder grinding mil can be widely used in chemical, metallurgy, non-metallic ores and other industries, especially in the field of ultra-fine grinding of white non-metallic ores. Rubber, PVC, ink and other industries provide high-quality fillers and additives. It can be widely used in large-scale ultra-fine dry powder processing of non-metallic minerals such as calcite, marble, limestone, dolomite, barite, talc, kaolin, dolomite, wollastonite, gypsum, feldspar, and pyrophyllite.

Advantage of Calcium carbonate ultrafine vertical powder grinding mil

  • Calcium carbonate ultrafine vertical powder grinding mil is easier to form material layer than ordinary vertical mill, so that the mill can grind to the required fineness.
  • Using multi-head classifier, no need for secondary air sorting and classification, no inferior materials.
  • Material layer precompaction device, super fine vertical mill vibration is small, power play effectively.
  • Pump lubrication can not only fully lubricate and cool roller bearings, but also ensure that the roller bearing room will not store too much oil resulting in leakage.
  • Intelligent roller pressure control, avoid destructive impact and violent vibration.

Working Principle of Calcium carbonate ultrafine vertical powder grinding mill

Calcium carbonate ultrafine vertical powder grinding mill mainly consists of the motor,reduction gear,grinding rollers,grinding plate,pressure-applying device,classifier,mill body.oil station ,and electrical system.

Calcium carbonate superfine vertical powder grinding mill plate is rotated by the main motor via the reduction gear. Meanwhile, high pressure air enters the mill interior via inlet. Materials then fall onto the center of the grinding plate in rotation by the screw conveyor feeder. Due to the centrifugal force, the materials evenly move from the center of the grinding plate towards its fringe. While passing across the track in the grinding plate, large blocks of materials are crushed and grinded directly by the grinding roller. The fine particles form the material bed, owing to squeezing, where the inter-particle crushing takes place until grind to the fine powder.

Calcium carbonate ultrafine vertical powder grinding mill fine powder continue to move towards the fringe of the grinding plate until they are taken away by strong air flow at the air ring. While the materials along with the air flow pass through the separator located above the grinding plate, the coarse particles return to the grinding plate for re-pulverization due to the action of the rotor blade, the fine particles along with the air flow leave the mill interior and are collected and discharged as finished powder product by the powder collector.

Product Parameter of Calcium carbonate ultrafine vertical powder grinding mill

Main Configuration and Production
Model CLUM1425 CLUM1632 CLUM1736
Working Diameters(mm) 1400 1600 1700
Number of rollers(pieces) 3 3 3
Number of classifier(pieces) 5 7 7
Power of classifier(Kw) 5X15 7X15 7X(15~18.5)
Main unit power (Kw) 250 315 355
Blower power(Kw) 200 250 315
Feed size (mm) <10mm <10mm <10mm
Moisture of feeding material <3% <3% <3%
Less than 2μm=34%
11-14 13-17 15-19
Less than 2μm=46%
7-8 9-10 11-12
Less than 2μm=60%
3-4 / /
Material: based on calcite
Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments

Introduction Manufacturer of Calcium carbonate ultrafine vertical powder grinding mill

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. We have established a whole production chain.​​ We still insist on communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always be on the industry front.

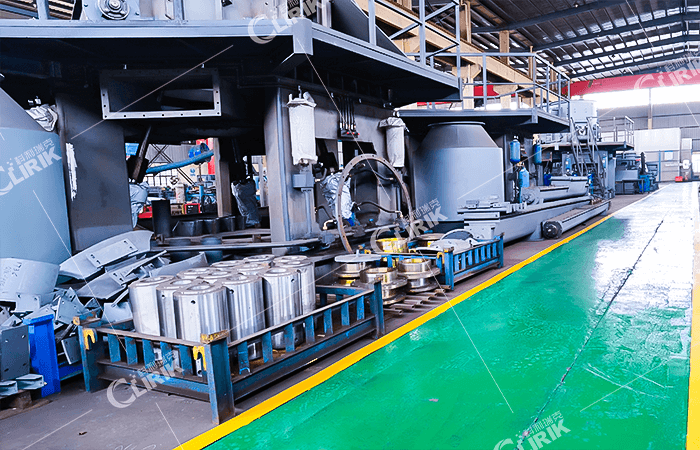

Our Workshop

Our workshop adopts a 5S management system for management. The staff of the workshop keep the passageway and worktable clean. The finished product equipment area, operation area and storage area of the workshop are reasonably divided. Production site reasonable and effective planning, organization, coordination, control and detection, to achieve high quality, efficient, low consumption, balanced, safe and civilized production. To provide customers with higher quality grinding equipment.

Other Product

In addition to the Calcium carbonate ultrafine vertical powder grinding mill, we can also provide you with HGM series ultrafine powder grinding mill, YGM series high pressure suspension grinding milljaw crusher, hammer crushercone crusherTH bucket elevator, CLG series powder surface coating machine and other auxiliary equipment of ore production line.

Clirik mine mill recommended
Clirik mine mill recommended

Our Certificate

With super product, well-deserved reputation and excellent service, Clirik has won lots of certificates and praise from our customers. Depend on this integrity, CLIRIK is always very popular among owners of quarry and mining. Won a number of patent certificates and honorary awards !


Why Choose Clirik ?

Clirik Ultrafine powder technology is a trusted partner. We have been focusing on the research and development and production of ultrafine mills. Continuous improvement and excellence to create valuable grinding equipment for customers.

Full service:
Raw material testing-program design-equipment manufacturing-installation-commissioning-technical training-up to standard and production-after-sales service.

Factory direct supply:
More than 30 years of experience in R&D and manufacturing, and 120+ countries and regions coverage. The source manufacturer has no middleman, higher cost performance, and excellent quality, ingenuity.

Clirik provides solutions for calcite grinding/crushing and screening, tailor-made solutions for you.

Automatic equipment production, the pipe wall is thicker and resistant to compression and deformation, environmentally friendly materials are harmless, and support customization.
