Talc Raymond grinding mill

Processing ability: 1-30t/h

Fineness: 50-325 mesh

Max feeding size: 20mm

Range of application: Talc, calcium carbonate, limeston, dolomite, bentonite, pumice, gypsum, kaolin, granite,glass...

  • +8613917147829
  • sales@clirik.com

Introduction to talc Raymond grinding mill

Talc Raymond grinding mill is mainly used in metallurgy, building materials, chemical industry, mines and other minerals material grinding processing, can be grinder feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramic, aluminium vanadium and soil, manganese ore, iron ore, copper ore, phosphate rock, zircon sand, slag, water slag, cement clinker, activated carbon, dolomite, granite, garnet, chemical fertilizer, compound Fat, fly ash, coal, coking coal, lignite, ling mei sand, chrome oxide green, gold, red mud, clay, kaolin, coke, coal gangue, porcelain clay, fluorspar, bentonite, medical stone, rhyolite, pyrophyllite, shale, violet arenaceous stone, green muddy rock, overlapping rock, basalt stone, plaster, graphite, silicon carbide, such as thermal insulation material mohs hardness below the level 6, humidity in 6% of all A non-flammable and explosive mineral material.

Talc Raymond grinding mill

Advantage of talc Raymond grinding mill

1. High efficiency and energy saving.

Under the same fineness of finished product and motor power, the output is more than double that of jet mill and ball mill.

2. Long service life of wearing parts.

The grinding roller and the grinding ring are forged with special materials, so that the utilization degree is greatly improved. Generally can reach more than one year, processing calcium carbonate, calcite, talc, the service life can reach 2-5 years.

3. High safety and reliability.

Because there is no rolling bearing and no screw in the grinding cavity, there is no problem that the bearing and its seal are easy to be damaged, and there is no problem that the screw is easy to loosen and damage the machine.

4. Environmental protection and cleaning.

Using pulse dust collector to capture dust, using muffler to reduce noise, has the characteristics of environmental protection, clean.

Working principle of talc Raymond grinding mill

Main structure of talc Raymond grinding mill:

Talc Raymond grinding mill is mainly composed of main engine, analysis engine, blower, finished cyclone separator, pipeline device, motor and so on. The main machine is composed of a frame, inlet volute, shovel knife, grinding rod, grinding ring, cover shell and motor.

Auxiliary equipment is jaw crusher, bucket elevator, electromagnetic vibration feeder, users can choose flexibly according to the site situation.

In the host, grinding rod assembly through the cross arm shaft hanging on the grinding rod hanger, grinding rod contact with the spindle and shovel head fixed hanger, pressure spring pressure outside the cantilever end face of the grinding rod bearing chamber, the cross arm shaft as the fulcrum force grinding stick tightly pressed on the inside of ring round surface, when the motor through the gear drive shaft rotation, perfectly on the shovel head the shovel and ground rod synchronous rotation, The roller rotates around its own axis while rolling round in the grinding ring. The motor drives the impeller of the analytical machine to rotate through the transmission device. The higher the impeller speed, the finer the powder sorted out.

Working process of talc Raymond grinding mill:

After the raw ore material is finely crushed, the material is sent to the small bin by the hoist, and then the vibration feeder is evenly and continuously sent to the talc Raymond grinding mill main mill room. Under the action of the centrifugal force of high-speed rotation, the grinding roller is swung outward, tightly pressed on the grinding ring, and the shovel knife picks up the material to be sent to the grinding roller and the grinding ring, and the grinding roller rolls and grinds the material.

The fine powder after grinding is carried to the analysis machine for sorting with the circulating air of the blower. The fine powder that is too coarse falls back to the grinding, and the qualified fine powder enters the finished product cyclone powder collector with the air flow and is discharged through the powder outlet pipe, which is the finished product. In the mill room, due to some water in the ground material, heat generation during grinding, water vapor evaporation, and the interface of each pipeline of the machine is not tight, the outside gas is sucked in, so that the circulation pressure increases, to ensure that the mill works under negative pressure, the increased gas flow is discharged into the dust collector through the residual air pipe, and then purified into the atmosphere.

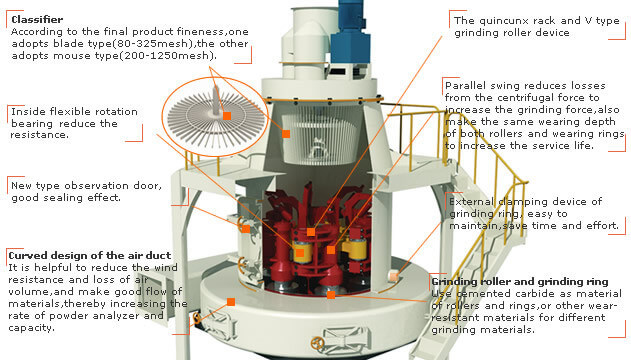

Talc Raymond grinding mill principle
Talc Raymond grinding mill principle

Points for attention in the work of talc Raymond grinding mill

1.Operator training.

During the use of the talc Raymond grinding mill, professional staff should be responsible for the care of the machine. Equipment operators must have a certain technical level. Before the installation of the mill, the operator must be given necessary technical training, so that they can understand the principle and performance of the mill and be familiar with the operation procedures, so as to avoid the failure can not be solved in time.

2. Clean the talc Raymond grinding mill.

After a long time of work, the dirt on the mill is easy to clean. In the process of cleaning, high pressure and high temperature water gun can not be used to wash, especially the electrical part, but also can not be washed with water to avoid the burning of electrical appliances.

3. The selection and replacement of oil.

For the selection of fuel oil, we need to pay attention to the nature of fuel oil. The commonly used fuel oil is diesel oil, but it should be noted that the freezing point is higher than the same as the environmental temperature of diesel oil. Generally choosing 5 degrees lower than the environmental temperature of diesel oil, you can choose -10#, -20#, -35# and other diesel oil. When cleaning, it is also necessary to clean up the fuel system thoroughly. At the same time, it is necessary to check whether the oil pump is normal and eliminate the hidden trouble. The fuel system is also cleaned so that fuel oil can be supplied to keep up with the operation of the equipment when it starts up. For the replacement of lubricating oil or grease, it is necessary to pay attention to the use of lubricating oil by the equipment, and decide whether to replace it according to the amount of use.

4. Spare parts maintenance.

Talc Raymond grinding mill machine in the process of running parts according to the working content of different and have different temperatures, the cooling system in equipment, maintenance note cannot make the cooling system of tank in precipitation in the mud, when found to timely removed, and the water tank water temperature too high or too low, can’t need to add antifreeze in the tank.

Product parameter of talc Raymond grinding mill

Model Roller Ring Feeding
Mill System
Dimension (mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 35.7 1.0-3.0 4300*3500*5100
YGM9517 4 310 170 950 170 25 0.613-0.033 72.65 2.1-5.6 7100*5900*7900
YGM1280 3 370 240 1170 240 20 0.613-0.033 145.15 4.5-12.0 9300*5600*8200
YGM1300 4 410 280 1270 280 20 0.613-0.033 202.15 6.5-16.0 9100*8200*8400
YGM1620 4 450 300 1500 300 20 0.613-0.033 322.2 8.0-20.0 12500*5700*10500
YGM1720 4 510 300 1720 300 35 0.613-0.033 450 10.5-28.0 11550*9500*1050

Customer case of Talc Raymond grinding mill

What is the talc ?

The main component of talc is aqueous magnesium silicate talc, the molecular formula is Mg3Si4O102. Cleavage surface is pearl luster. Mohs hardness 1~1.5, specific gravity 2.7~2.8, specific surface area 2.41 ~ 2.42 m2·g-1. Talc has excellent physical and chemical characteristics such as lubricity, viscosity resistance, flow aid, fire resistance, acid resistance, insulation, high melting point, chemical inactivity, good covering power, softness, good luster, strong adsorption.

Raymond mill customer case site

Talc Powder Raymond Mill – in Pakistan Case

Raw Material: Talc

Country Of Client: Pakistan

Brief Introduction:

Pakistan customers use Shanghai Clirik Machinery Co., LTD. ‘s environment-friendly, efficient and low-cost YGM series talc powder Raymond mill equipment to process talc powder.


1. Why choose Clirik?

First of all, we can provide high-quality calcium powder products. Secondly, we can provide high-quality services from site survey, design scheme, equipment installation, technical personnel training and other one-stop services.

2. Do you have any other equipment besides talc Raymond equipment?

Talc crushing equipment: jaw crusher, hammer crusher, cone crusher, cone crusher and other crushing equipment.

Talc ultra-fine grinding equipment: HGM series ultra-fine grinding mill and CLUM series ultra-fine vertical powder grinding mill.

Talcum powder auxiliary equipment: talcum powder modifier, bucket elevator, screw conveyor, dust collector and other auxiliary equipment.

3. Which payment methods do you support?

L/C, D/P, D/A, T/T, Western, Union, Alibaba.com Pay, MoneyGram.

4. What delivery methods do you have?

According to the size of the equipment you ordered, we can provide the following modes of transportation: express, sea, land, air.
