Focus on the field of micro powder grinding !
Processing ability: 3 – 45t/h
Fineness: 400-3000 mesh
Max feeding size: 10 mm

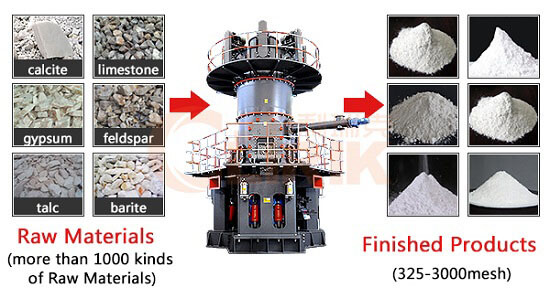

Range of application: Carbon black, Diatomite, Calcium Carbonate, Talc, Kaolin, Gypsum, Kaolin, Bentonite, Calcite, Limestone…
Table of Contents
Carbon black ultrafine vertical roller mill are suitable for huge capacity producing, widely used in grinding non-flammable and non-explosive materials under 7(the Moh’s hardness), such as quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, especially for slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.

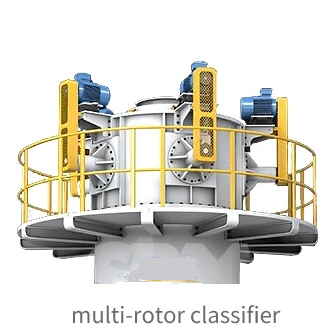

Independent research and development of carbon black powder ultrafine vertical roller mill used Adopt multi-head powder separator, Clirik classifier perfect solved the particle cutting point height rate of screening questions, compared with the traditional horizontal classifier, fully guaranteed the fineness of finished product can reach 20% ~ 70%.

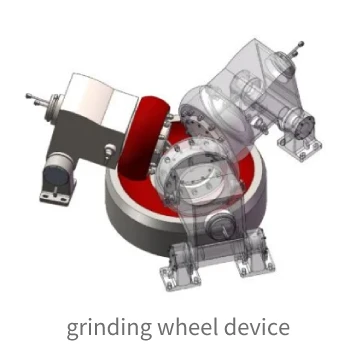

Carbon black ultrafine vertical roller mill grinding plate is rotated by the main motor via the reduction gear. The material falls to grinding disc from the feed opening.

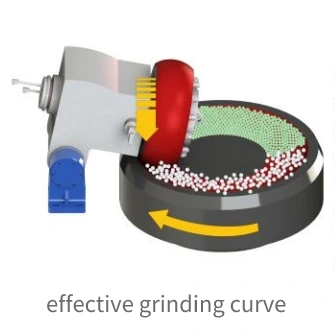

The materials are driven to the edge of disc by the centrifugal force and crushed into fine powders by rollers. Then, the hot air from the nozzle take the fine powder to high effiency classsifer. The qualified powder are taken by the air to the powder collector to be collected, while the unqualified powder are sent back for regrinding.
1.High grinding efficiency: save 20~30% power consumption compared with the ball mill.
2.Strong drying capacity: dry and grind raw materials with moisture content as much as 15%.
3. Mutifunction: crushing, drying, grinding, separating and conveying.
4. Low noises and little dust: no direct contact between the grinding rollers and grinding disc, so metallic impact is avoided and its noises is 20~25 decibels lower. Totally closed negative pressure operation has employed by this vertical grinding mill, so there is little dust during the operation.
5. Low wear rate and little metallic pollution: its metal wear is only 5~10g/t.
| Main Configuration and Production | |||
| Model | CLUM1425 | CLUM1632 | CLUM1736 |
| Working Diameters（mm） | 1400 | 1600 | 1700 |
| Number of rollers（pieces） | 3 | 3 | 3 |
| Number of classifier（pieces） | 5 | 7 | 7 |
| Power of classifier（Kw） | 5X15 | 7X15 | 7X（15～18.5） |
| Main unit power （Kw） | 250 | 315 | 355 |
| Blower power（Kw） | 200 | 250 | 315 |
| Feed size （mm） | ＜10mm | ＜10mm | ＜10mm |
| Moisture of feeding material | ＜3% | ＜3% | ＜3% |
| Less than 2μm=34% output（t/h） |
11-14 | 13-17 | 15-19 |
| Less than 2μm=46% output（t/h） |
7-8 | 9-10 | 11-12 |
| Less than 2μm=60% output（t/h） |
3-4 | / | / |
| Material: based on calcite Particle size distribution: measured by micro laser diffraction particle size analyzer in British Malvern3000 instruments |
|||
The following is the customer field application video of carbon black ultrafine vertical roller mill. If you want to know more information, please click here to consult us.
In addition to CLUM series ultra-fine vertical carbon black grinding machine, we have many other related carbon black grinding equipment for you to choose from.
1. Why choose Carbon black ultrafine vertical roller mill of Shanghai Clirik Machine Co., LTD?
Clirik carbon black ultrafine vertical roller mill performance is good, can grind out ultrafine carbon black powder, and grinding out powder quality is good, increase market competitiveness. Bring us more profit.
2. Do you provide product warranty service?
We provide quality assurance service, and the main engine warranty lasts for one year. We have sufficient stock of wearing parts, and we can send parts to you after you place your order.
3. What other services do you have?
We can provide on-site survey planning site, production line design and after-sales on-site installation technical personnel training and other services.
4. What kinds of payment methods do you have?
The payment term is T/T,L/C, Western Union, D/P, D/A,MoneyGram.
