Carbon Black Enhanced Roller Grinding Mill

Processing ability: 1-35 t/h

Fineness: 80-500 mesh

Max feeding size: 35 mm

Range of application: Carbon black, calcium carbonate, limestone, gypsum, graphite, bentonite, talc, rock phosphate, coal, barite, dolomite, kaolin, mica ...

  • +8613917147829

Product overview of carbon black enhanced roller grinding mill

Carbon black enhanced roller grinding mill besides grinding carbon black, It can also be used to grind non-flammable and explosive materials with Mohs hardness below 6.

The fineness of the finished product can be adjusted freely between 80 and 500 mesh.

Carbon Black Enhanced Roller Grinding Mill

Model: CLRM9720, CLRM1280, CLRM1300, CLRM1620, CLRM1700A, CLRM1720, CLRM1900A, CLRM2150

Adjustable Fineness: 50-800 mesh

Output: 1-35 t/h

Material: Non-flammable, non-explosive, brittle material with Mohs hardness ≤6. high-fine powder processing of non-metallic ores

Such as carbon black, calicum carbonte, calcite, kaolin, dolomite, barite, limestone, and marble.

Features: Safe and stable, high efficiency and energy saving, simple operation, wide application range, long service life than ordinary mills, environmental protection and pollution-free

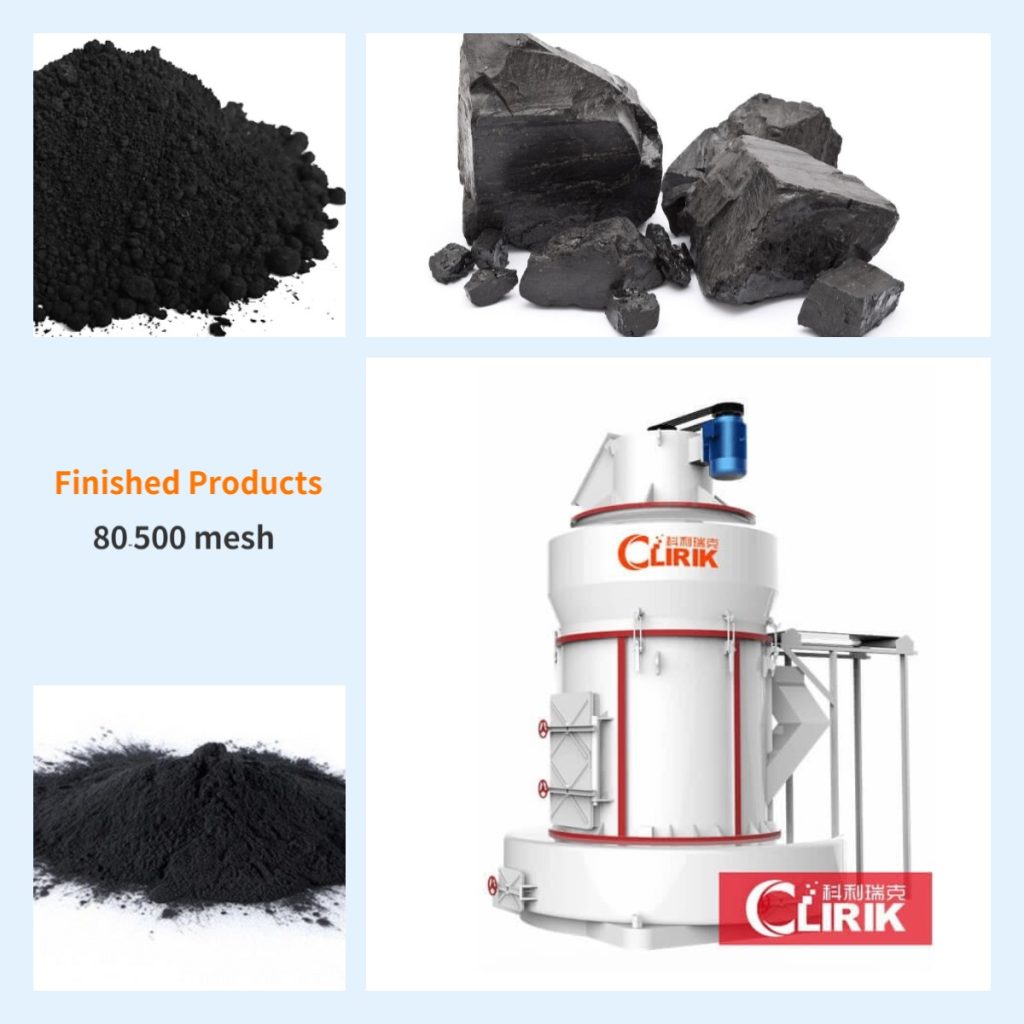

Carbon black enhanced roller grinding mill
Carbon black enhanced roller grinding mill

Product parameter of carbon black enhanced roller grinding mill

Model Roller Ring Main Shaft Speed
Feeding Size
Finished Size
External Dia
CLRM9720 3-4 320*200 1077 200 145 <20 80-500 45*15*37 1-7
CLRM1280 3 370*2*40 1280 240 125 <20 80-400 75*15*55 2-12
CLRM1300 4 410*2*80 1390 280 112 <20 80-400 110*22*90 3-15
CLRM1620 4 450*300 1620 300 102 ><20 80-400 160*30*132 5-20
CLRM1700 A 4 510*300 1700 300 102 <30 80-325 185*37*160 6-25
CLRM1720 4 510*300 1850 300 92 <35 80-325 250*45*185 6-25
CLRM1900 A 4 600*300 1900 300 92 <35 80-325 250*45*220 8-32
CLRM2150 4 600*300 2150 300 85 <35 80-325 315*45*280 12-35

Working principle of carbon black enhanced roller grinding mill

Carbon black enhanced roller grinding mill components : main unit, reducer, powder classifier, cyclone percolator, dustcleaner, blower, electrical cabinet and pipes. The optional accessories include a crusher, bucket elevator, feeder.

Big carbon black materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding.

The grinded powder is carried by the airflow from the blower to the cassifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, are separated and collected there.

Carbon black powders are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by a return pipe on the top of a cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

Product features of carbon black enhanced roller grinding mill

1. Optimized grinding part, increase grinding efficiency​

Compared with the previous mill, the grind pressure increased 10%, grinding area up 15 -20%. Optimized the roller layout, escalated the efficient grinding space.

2. Triple vibrating damping for working stability

Triple damping to resist the vibrating transmit in the main unit base, volute aiflow house, unit body, grinding part. Be sure of the stable grinding condition.

3. New type impeller of cassifier with VFD

Equipped the new cage type impeller for lassifier, adjust the speed freely by VFD, enlarge the output size range to 80 – 425 mesh.

4. Grinding device adopts superimposed multistage seal, prolong the lubricating cycle.

Make carbon black enhanced roller grinding mill the maintenance convenient, cost saving.

What is carbon black?

Carbon black is a kind of amorphous carbon, which is a light, loose and extremely fine black powder with a very large surface area ranging from 10 to 3000m2/g.

It is a carbonaceous substance (coal, natural gas, heavy oil, fuel oil, etc.) are the products obtained by incomplete combustion or thermal decomposition under the condition of insufficient air.

Carbon black

Carbon Black Application

Carbon black powder can be applied to tires, plastics, food contact grades, batteries, high performance coatings, rubber goods, pipe, agricultural irrigation, mulch films and greenhouse coverings, automotive skin contact, wire and cable, toner and printing inks.

Other carbon black grinding equipment

In addition to CLRM series enhanced roller grinding mill, we have many other related carbon black grinding equipment for you to choose from.


1. How long is the warranty of your carbon black enhanced roller grinding mill? Do you supply spare parts?

Our warranty period is generally one year. We can supply spare parts.

2. Do you provide after-sale services?

Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

3. Do you provide equipment operation training?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

4. Are you a trading company or manufacturer?

We are a factory.

5. How long is your delivery time?

Generally, it is 10-15 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.

6. If I need a complete crushing plant, can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China & overseas.
