Shandong customers inspect our limestone ultrafine powder grinding mill

Source:admin Posted:2023-08-31

Customer visit of limestone ultrafine powder grinding mill

The customers from Shandong came to our company for inspection. The manager of the business department of Clirik received friends from afar, and accompanied the customer to visit our ultra-fine mill processing workshop and ultra-fine mill exhibition hall. In our enthusiasm Under the explanation, the customer gave full affirmation to our company’s limestone ultrafine powder grinding mill.

Shandong customers inspect our limestone ultrafine powder grinding mill
Shandong customers inspect our limestone ultrafine powder grinding mill

Then our sales took the client to the conference room and explained and analyzed the prepared plans to the client in detail. From the structure and model of the equipment, each corresponding output, which user groups are suitable for use. After listening to it, customers are also very satisfied. After a period of communication, we reached a consensus. The customer decided to adopt our company’s plan and limestone ultrafine powder grinding mill equipment procurement.

As a powerful grinding mill manufacturing enterprise, Clirik has been working hard to customize every mill line for customers, and the scheme matching is scientific, the milling efficiency is high, and the energy consumption is low. Whether it is pre-sales or sales During and after sales, Clirik’s products and services have won praise and support from many customers. It is a vertical mill manufacturer that thinks about customers, takes customers as the center, and creates value for customers.

Product features of limestone ultrafine powder grinding mill

Limestone ultrafine powder grinding mill is mainly suitable for ultra-fine powder processing of non-flammable and explosive brittle materials with medium and low hardness, Mohs hardness ≤ 7, such as calcite, chalk, limestone, carbon black, kaolin, bentonite, Talc, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite, rectorite, diatomaceous earth, barite, gypsum, alunite, graphite, fluorite, phosphate rock, Potassium ore, pumice and other materials, the particle size of the fine powder finished product can be adjusted arbitrarily between 325-3000 mesh, and the output can reach 0.4-45 tons per hour (the specific output is subject to the actual processed materials).

Performance advantage of limestone ultrafine powder grinding mill

1. High output: Limestone ultrafine powder grinding mill has more than double the output of jet mill, stirring mill and ball mill under the condition of the finished product fineness and the same motor power.

2. Long service life of wearing parts: The grinding roller and grinding ring are forged from special materials, which greatly improves the utilization degree. Generally, it can reach more than one year. When processing calcium carbonate and calcite, the service life can reach 2-5 years.

3. High safety and reliability: There is no rolling bearing and no screw in the grinding chamber, so there is no problem of easy damage to the bearing and its seal, and there is no problem that the screw is easy to loose and damage the machine.

4. Environmental protection and cleanliness: the pulse dust collector is used to capture dust, and the muffler is used to reduce noise, which has the characteristics of environmental protection and cleanliness.

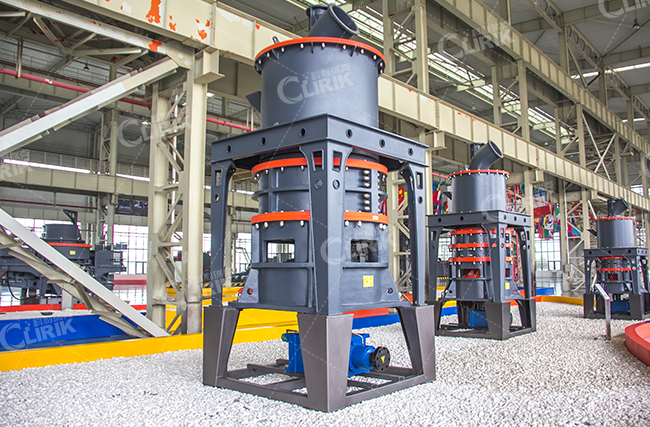

Limestone ultrafine powder grinding mill
Limestone ultrafine powder grinding mill

Structural composition of limestone ultrafine powder grinding mill

Limestone ultrafine powder grinding mill is mainly composed of motor, reducer, grinding wheel device, disc grinding device, pressurizing device, powder separator, feeding device, oil station, main engine, electric control system and other parts.

1. Grinding wheel device: the main part of grinding materials, without power output, and passive operation due to the friction force in contact with materials.

2. Grinding plate device: the grinding area of the material, connected with the reducer, and rotates by itself.

3. Pressurizing device: Control the gap between the grinding wheel and the grinding plate to ensure the pressure of the grinding wheel during the grinding process.

4. Powder Separator: Multi-head powder selection structure, using the principle of rotating centrifugal force to realize the fine powder screening and filtration work in continuous processing, is an efficient and efficient powder selection device.

Working principle of limestone ultrafine powder grinding mill

The motor of the main machine drives the grinding disc to rotate through the reducer, and at the same time, the airflow of the high-pressure fan enters the main machine from the tuyere, and sends the material into the vertical main machine. Grinding takes place via a feed screw, falling into the center of the grinding disc. Under the action of the centrifuge, the material is dispersed from the center of the grinding disc to the surroundings. When passing through the roller table area on the grinding table, under the pressure of the rollers, the large-grained materials are directly crushed, and the small-grained materials are further crushed until they are powdered after being pressed. The powdery material continues to move towards the side of the pot until it is taken away by the strong airflow from the air inlet. When the material in the airflow passes through the upper classifier, the coarse particles fall back into the disc under the action of the centrifugal force generated by the high-speed rotating impeller. Qualified powder passes through the powder selection system with the airflow, and is collected by the dust collector, which is the finished product.

Product parameter of limestone ultrafine powder grinding mill

HGM series limestone ultrafine powder grinding mill, there are multiple models for you to choose, you can match according to your needs, if you have any questions, you can leave us a message at any time, our sales manager will get in touch with you within 24 hours. Looking forward to your consultation.

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315
