Focus on the field of micro powder grinding !
Processing ability: 1-35 t/h
Fineness: 80-500 mesh
Max feeding size: 35 mm
Range of application: Calcium carbonate, limestone,dolomite,gypsum,carbon black,zeolite,calcite,feldspar,fluorite,talc...
Table of Contents
The CLRM series dolomite powder Enhanced roller grinding mill is an innovative and advanced industrial machine designed to efficiently grind and process dolomite powder with enhanced quality and performance.
Dolomite is a mineral that is commonly used in various industrial applications, such as in the production of ceramics, glass, iron and steel, construction materials, and more. The grinding process is crucial in converting raw dolomite into a fine powder that can be utilized effectively in these applications.
A. Optimize the grinding assembly and improve the grinding efficiency.
Compared with the previous mill, the grinding pressure is increased by 10%, the grinding area is increased by 15-20%, and the layout of the grinding rollers is improved to improve the effective grinding space efficiency.
B. Triple shock-absorbing structure design to ensure the stability of the equipment.
The equipment base, volute air duct, machine body, and grinding assembly are triple-shock-absorbed to effectively prevent vibration transmission and ensure stable output of the equipment.
C. The frequency conversion control of the new impeller improves the efficiency of powder selection.
The impeller of the analytical machine is upgraded from a vane type to a wheel type, and the speed is continuously variable through frequency conversion control. The fineness range of the finished product can be adjusted arbitrarily from 80-425 mesh.
D. The grinding device adopts overlapping seal, which has good sealing performance.
CLRM series dolomite powder Enhanced roller grinding mill can effectively prevent the leakage of wind dust and create a clean ore powder processing plant.
CLRM series dolomite powder enhanced roller grinding mill components:

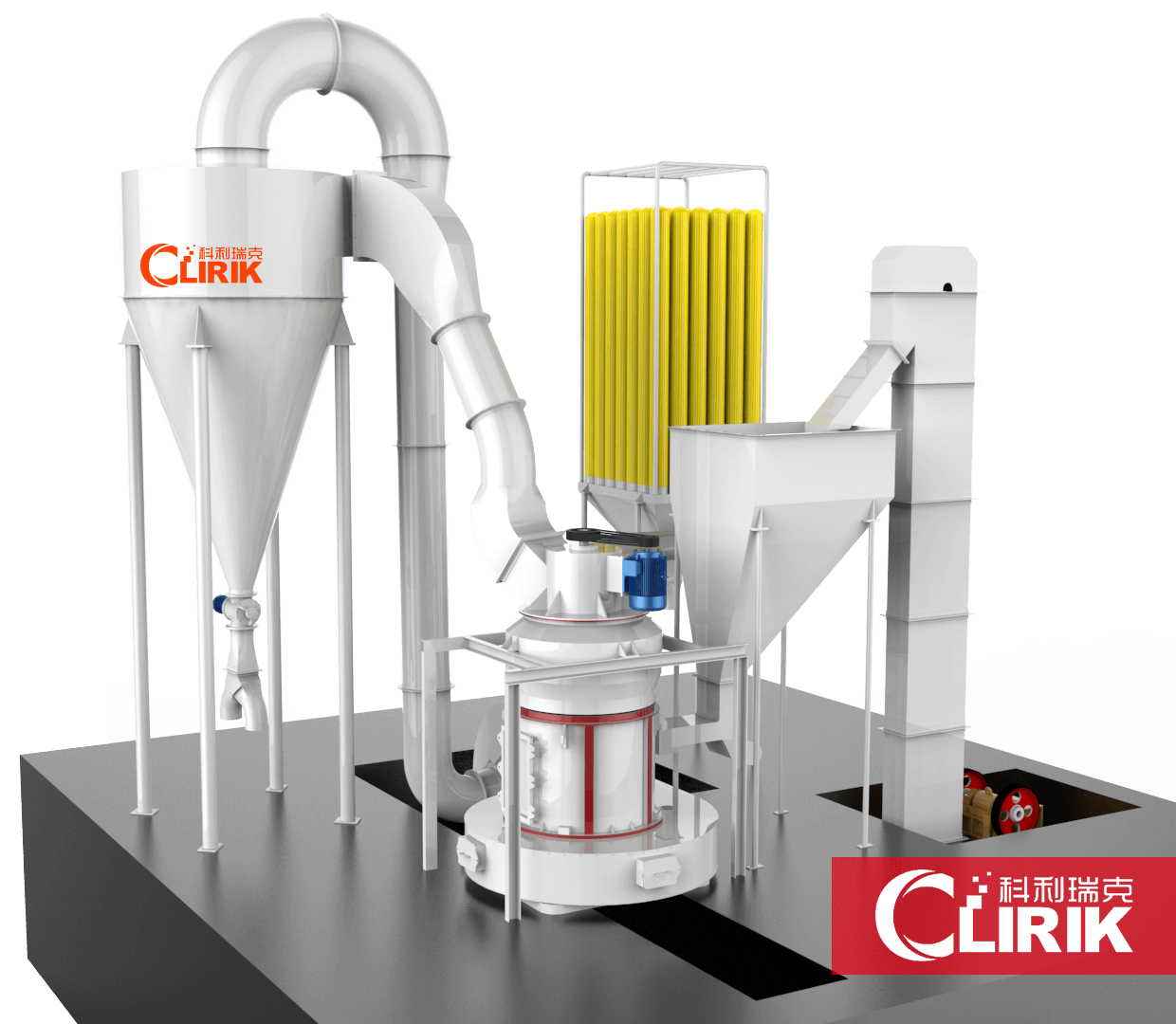

The standard configuration of the CLRM series enhanced roller grinding mill consists of main unit, reducer, powder classifier, cyclone percolator, dustcleaner, blower, electrical cabinet and pipes. The optional accessories include a crusher, bucket elevator, feeder.
CLRM series dolomite powder enhanced roller grinding mill workflow:
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder is carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by a return pipe on the top of a cyclone collector. the whole airflow system is a sealed circulation and is circulated under positive and negative air pressure.
| Model | Roller | Ring | Main Shaft Speed (r/min) |
Feeding Size (mm) |
Finished Size (mesh) |
Motor (kw) |
Capacity (t/h) |
||
| Quantity (piece) |
Size (mm) |
External Dia (mm) |
Height (mm) |
||||||
| CLRM9720 | 3-4 | 320*200 | 1077 | 200 | 145 | <20 | 80-500 | 45*15*37 | 1-7 |
| CLRM1280 | 3 | 370*2*40 | 1280 | 240 | 125 | <20 | 80-400 | 75*15*55 | 2-12 |
| CLRM1300 | 4 | 410*2*80 | 1390 | 280 | 112 | <20 | 80-400 | 110*22*90 | 3-15 |
| CLRM1620 | 4 | 450*300 | 1620 | 300 | 102 | ><20 | 80-400 | 160*30*132 | 5-20 |
| CLRM1700 A | 4 | 510*300 | 1700 | 300 | 102 | <30 | 80-325 | 185*37*160 | 6-25 |
| CLRM1720 | 4 | 510*300 | 1850 | 300 | 92 | <35 | 80-325 | 250*45*185 | 6-25 |
| CLRM1900 A | 4 | 600*300 | 1900 | 300 | 92 | <35 | 80-325 | 250*45*220 | 8-32 |
| CLRM2150 | 4 | 600*300 | 2150 | 300 | 85 | <35 | 80-325 | 315*45*280 | 12-35 |
SHANGHAI CLIRIK MACHINERY CO., LTD has a professional technical force and perfect production capacity. The company’s products are widely used in mining, road construction, bridge construction, housing construction and other industries, crusher, ultra-fine grinding mill, feeder, vibrating screen, sand washing machine, conveyor and other equipment and series of products, all passed the ISO9001:2000 standard quality certification.
Clirik has more than 12,000 square meters of standardized production plant, including a processing workshop, assembly workshop, painting and sandblasting workshop, trial machine debugging workshop, finished product placement workshop, etc. The workshop is equipped with more than 100 high-end CNC machine tools of well-known foreign brands.
3.Clirik trains you the technicians who use and maintain the grinding equipment.
4.Clirik provides you with a one-year warranty and lifetime service for grinding equipment.
Shanghai Clirik Machine Co., Ltd. has a variety of stone powder grinding mills, such as: HGM series micro powder grinding mill, YGM series high pressure suspension grinding mill, CLUM series ultrafine vertical roller mill, CLRM series enhanced roller grinding mill.
