Focus on the field of micro powder grinding !
Processing ability: 1-30 t/h
Fineness: 80-600 mesh
Max feeding size: <20 mm
Range of application: Gypsum, talc, calcite, limestone, marble, potash feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, red iron oxide, iron ore, etc.
Table of Contents

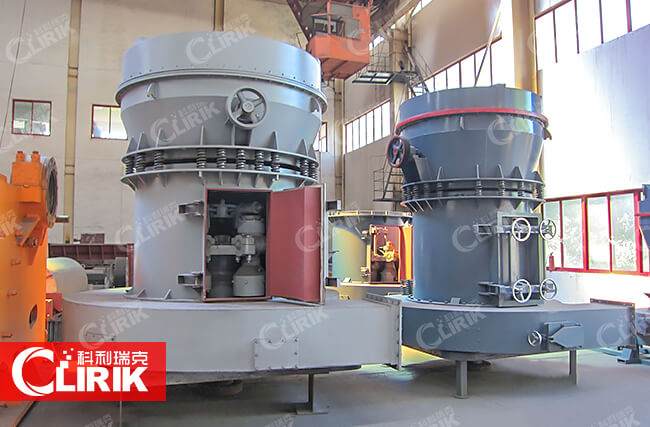

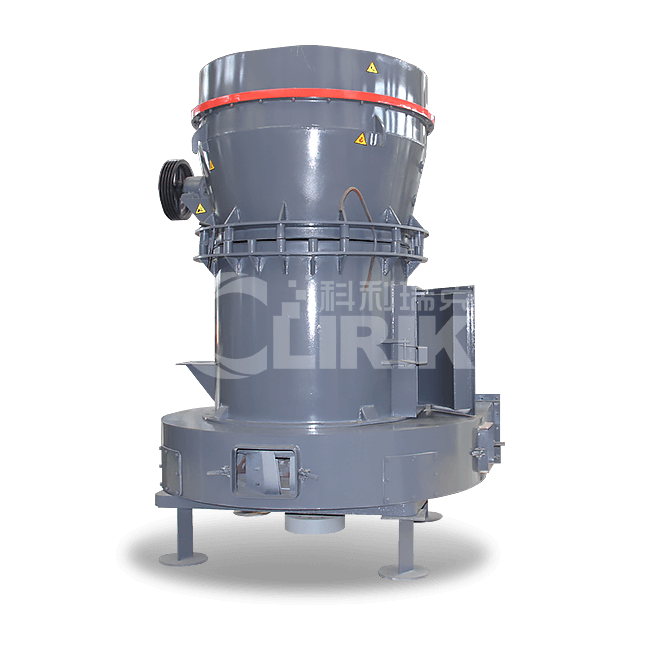

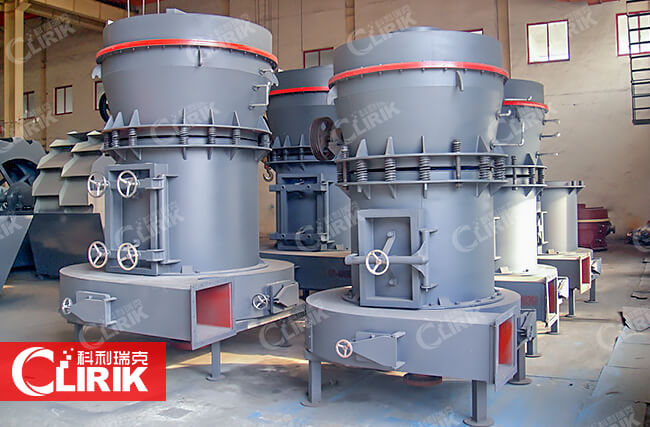

YGM Raymond grinding mill is also called high-efficiency Raymond grinding mill and high-pressure rotary roller mill. It is suitable for the grinding and processing of mineral materials in the fields of metallurgy, building materials, chemicals, mining, and other fields.
It is suitable for processing various non-flammable and explosive minerals with Mohs hardness below 9.3 and humidity below 6%. Such as gypsum, talc, calcite, limestone, marble, potash feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, red iron oxide, iron ore, etc.
The fineness of the finished product is between 80-600 mesh. Through the joint action of the analyzer and the fan, it can meet the requirements of different users.
1 The three-dimensional structure of the YGM Raymond grinding mill has a small footprint and is strong in complete sets. From the block material to the finished powder, it forms an independent production system.
2 The fineness of the finished powder is uniform, and the sieving rate is 99%, which is difficult for other milling equipment to have.
3 The transmission device of the main machine of the pulverizer adopts a closed gear box and belt wheel, with stable transmission and reliable operation.
4 The important parts of YGM Raymond grinding mill are made of high-quality steel, and the wear parts are all made of high-performance wear-resistant materials. The whole machine has high wear resistance and reliable operation.
5 The electrical system adopts centralized control, the grinding workshop can basically realize unmanned operation, and the maintenance is convenient.
The raw material is crushed to less than 20 mm by the jaw crusher and then lifted to the storage hopper by the elevator. Then through the feeder, the raw materials are uniformly, quantitatively, and continuously sent to the main machine for grinding.
The ground powder is blown away by the airflow and separated by a classifier. The powder conforming to the fineness enters the cyclone collector through the pipe with the airflow and is separated and collected. Finally, the powder in the tube is discharged into finished powder.
The large cyclone collector is arranged at the upper end of the suction fan of the return duct, and the airflow of the whole system is a closed-loop, which flows and circulates under the state of positive and negative pressure.
1. YGM Raymond Grinding Mill High production capacity: 1-30t/h.
2. The fineness can be adjusted between 80-600 mesh.
3. The reducer of Raymond roller grinding mill adopts a new type of reduction device: convenient adjustment and uniform particle size.
4. Large-capacity shovel，feed size 20 mm, increases the feeding progress.
5. Advanced host structure: stable operation, low noise, convenient maintenance, large grinding area.
6. The classification accuracy is high.
7. New type of grinding roller device: The grinding roller device adopts a new type of maintenance-free structure, and the sealing is reliable.
8. Large conveying capacity: high-pressure centrifugal fan.
9. Environmental protection, no dust pollution.
|
Model |
Roller Quantity |
Roller Diameter |
Roller Height |
Ring Inner Diameter |
Ring Height |
Feeding |
Finished |
Mill System |
Capacity |
Overall |
|
YGM7815 |
3 |
260 |
150 |
780 |
150 |
15 |
0.613-0.033 |
35.7 |
1.0-3.0 |
4300*3500*5100 |
|
YGM9517 |
4 |
310 |
170 |
950 |
170 |
25 |
0.613-0.033 |
72.65 |
2.1-5.6 |
7100*5900*7900 |
|
YGM1280 |
3 |
370 |
240 |
1170 |
240 |
20 |
0.613-0.033 |
145.15 |
4.5-12.0 |
9300*5600*8200 |
|
YGM1300 |
4 |
410 |
280 |
1270 |
280 |
20 |
0.613-0.033 |
202.15 |
6.5-16.0 |
9100*8200*8400 |
|
YGM1620 |
4 |
450 |
300 |
1500 |
300 |
20 |
0.613-0.033 |
322.2 |
8.0-20.0 |
12500*5700*10500 |
|
YGM1720 |
4 |
510 |
300 |
1720 |
300 |
35 |
0.613-0.033 |
450 |
10.5-28.0 |
11550*9500*10500 |

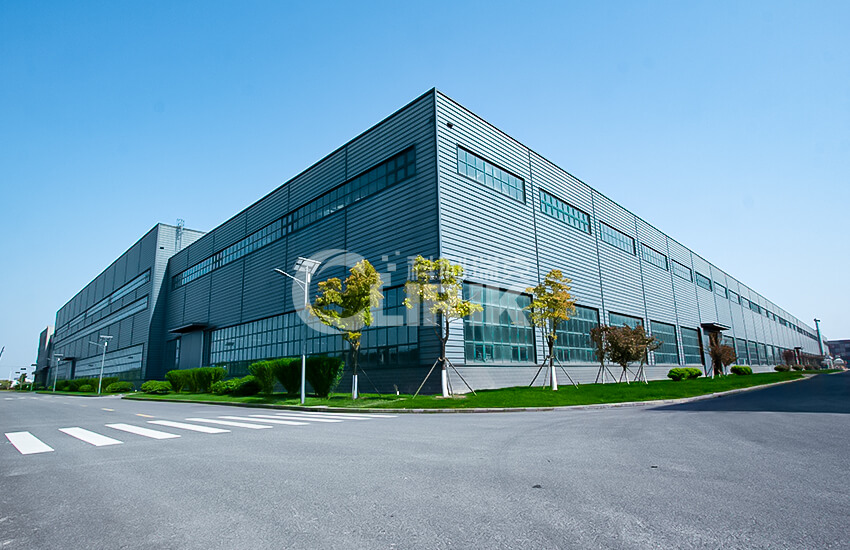

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China,As a professional enterprise which specializes in research, manufacture and sales of all kinds of mining equipment,a factory of 50,000 square meters for grinding mill production, another factory of 40,000 square meters also in Shanghai for all kinds of crushers production. We are near the Shanghai PuDong New Airport, only 15 minutes by car. Welcome you to visit our factory.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service. We’ll give you the most professional service as the manufacturer.
Our philosophy is: always follow your footsteps, the pursuit of your value, to achieve your profits.
So we continue to innovate and develop a variety of mining equipment, in order to provide you with better mine grinding equipment.
(1) After the improvement of the YGM Raymond grinding mill, the fineness of the finished material is more uniform, the pass rate is higher, and the grinding time is shortened.
(2) YGM Raymond roller grinding mill runs more stable.
(3) YGM Raymond roller mill has higher production efficiency.
(4)YGM Raymond roller mill has a lower failure rate.
(5)YGM Raymond mills are more environmentally friendly.
(1) High quality service
(2) CE, ISO9001
(3) Factory sells directly
(4) 30 years experience, professional
Accepted delivery terms: FOB, CFR, CIF, EXW, CPT, DDU, express.
Acceptable payment methods: T/T, L/C, Western Union.
