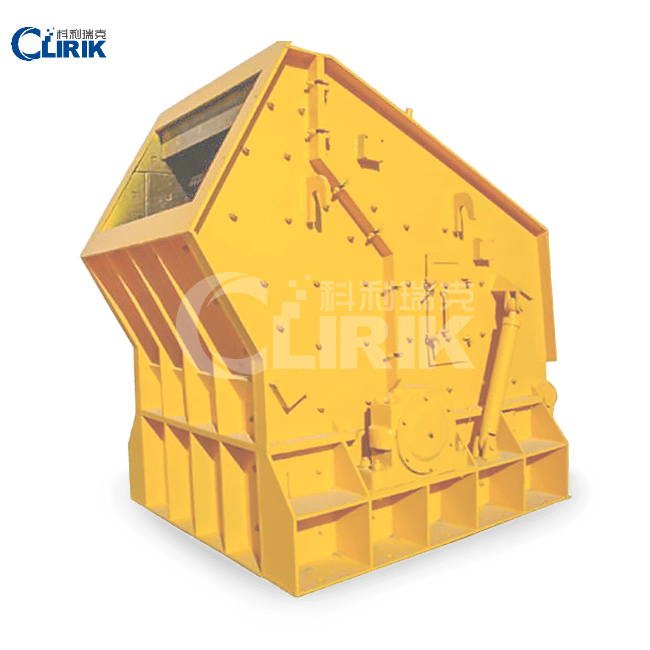

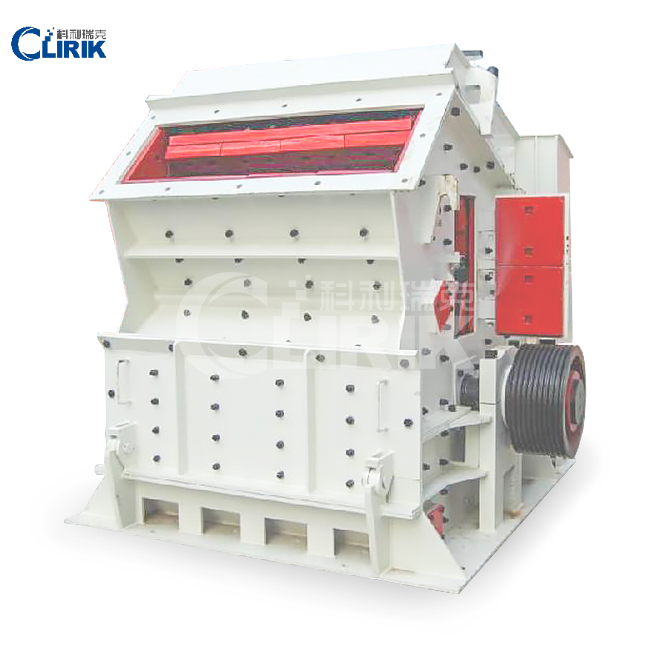

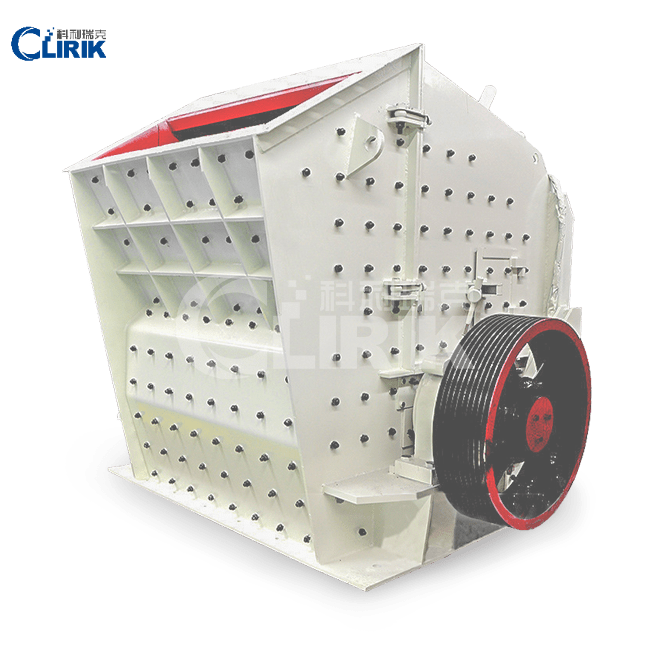

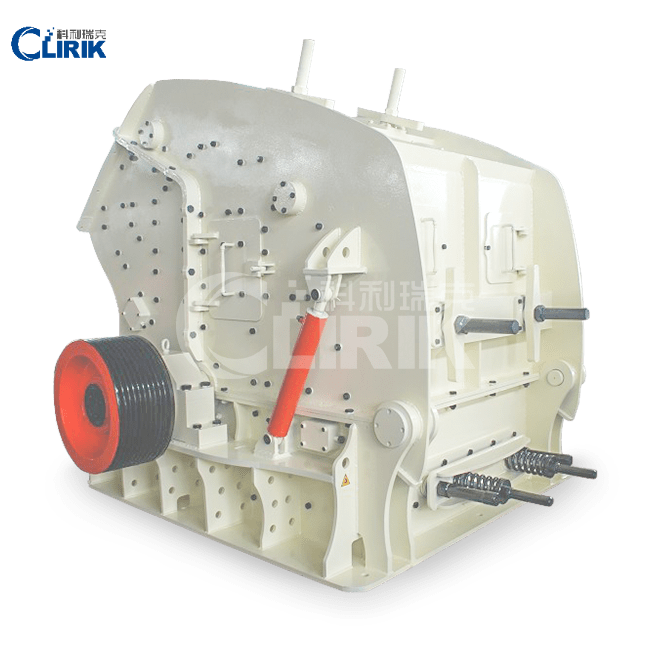

PF Series Impact Crusher

Processing ability: 50-260 t/h

Fineness: 0-200 mm

Max feeding size: 350 mm

Range of application: Quartz, Feldspar, Mica, Calcite, Gypsum, Fluorite, Limestone, Soil, Clay, Marble, Granite, Pebble, Coal, Slag, Iron ore...

  • +8613917147829

Product Overview

The PF series impact crushers adopt the technology of domestic traditional impact crushers. After years‘ design and optimization, such crushers boast more excellent performance and more reliable operation. It acts as medium and fine crushing equipment, most widely used domestic and abroad for metallurgy, mining, chemical industry, building materials, highway, railway, water conservancy and other industries for medium and fine crushing of various ores and bulk materials.

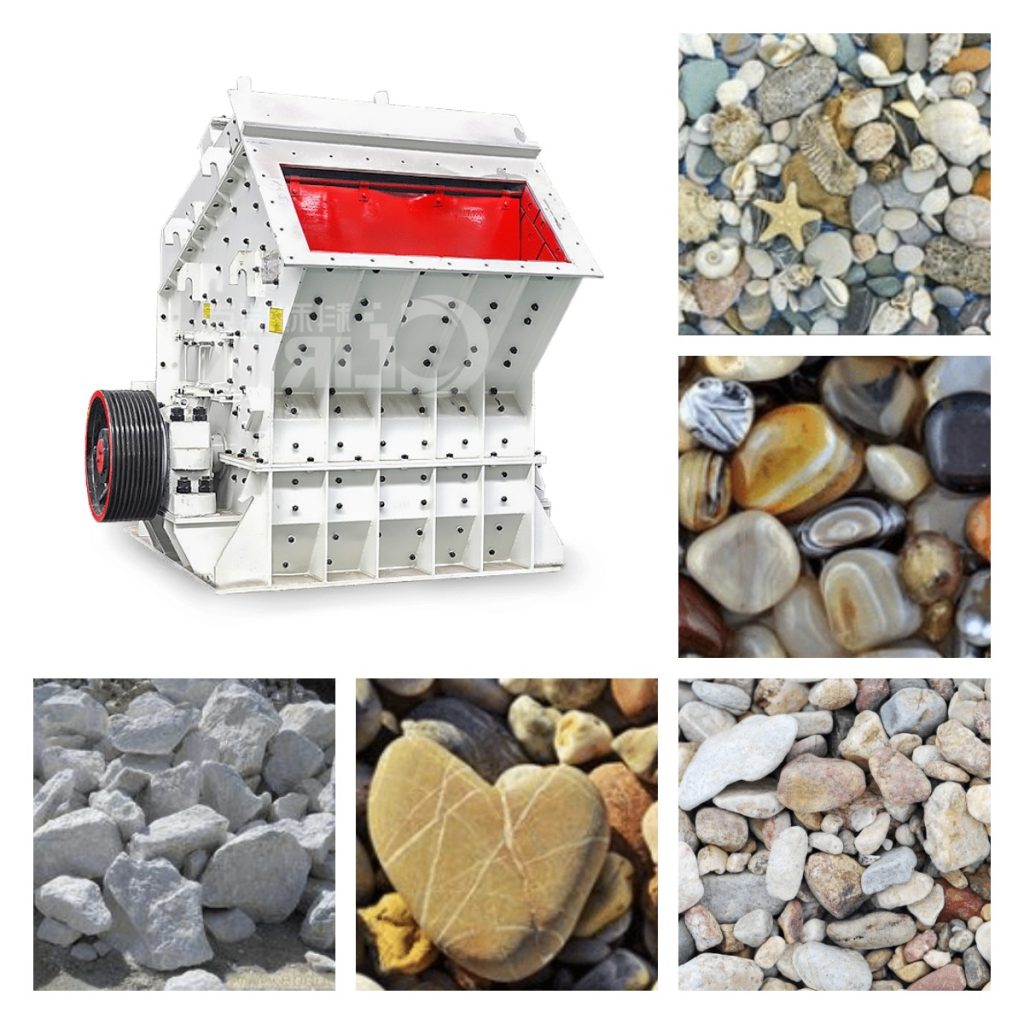

PF series impact crusher application Almost all minerals, such as quartz, feldspar, mica, calcite, gypsum, fluorite, limestone, soil, clay, marble, granite, pebble, coal, slag, iron ore, copper ore, manganeseore, refractory material, glass, etc.

Working Principle

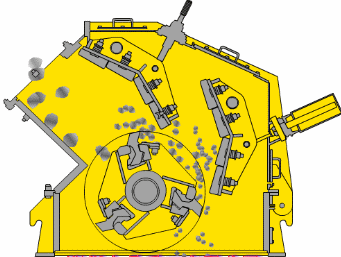

Impact crusher schematic diagram

PF Series Impact Crusher :

PF Series impact crusher uses impact energy to break materials. When the material enters the action area of the plate hammer, the high speed impact of the plate hammer makes the broken objects constantly thrown to the counterattack device installed above the rotor, and then springs back to the action area of the plate hammer from the counterattack liner to be counterattacked again. The material is broken repeatedly in the crushing chamber from large to small until the material is broken to the required size and discharged from the lower part of the machine

Product Adanvtage:

  • Multi – cavity uniform crushing, suitable for crushing hard rock.
  • Low and large feed opening, easy to arrange production line and increase feed size.
  • Easy to operate, easy to repair and replace wearing parts.
  • The new wear resistant material makes the plate hammer, counter lining and lining longer service life.

Poduct Parameter

Model Rotor Φ×L(mm) Feed Opening(mm) Max Feeding(mm) Capacity (t/h) Power (kw) Motor Model Machine Size(mm)
PF1010 F1000 × 1050 400 × 1080 350 50-80 4-75 Y280S-4/75 2455 × 2086 × 2800
PF1210 F1250 × 1050 400 × 1080 350 60-120 6-110 Y315L1-6 / 110 2590 × 2050 × 2810
PF1214 F1250 × 1400 400 × 1430 350 80-160 6-132 Y315L2-6 / 132 2590 × 2400 × 2810
PF1315 F1300 × 1500 860 × 1520 350 120-260 6-200 Y355M3-6 / 200 2930 × 2760 × 3050
