Product Overview Of TD Belt Elevator

TD belt elevator is a kind of high-efficiency belt elevator. The wider the belt of this conveying equipment, the greater the throughput. Of course, it also has a lot to do with the delivery speed.The belt elevator of this can be divided into (ordinary type, acid and alkali resistant type, oil resistant type) rubber.

TD belt elevator has the advantages of simple structure, convenient maintenance, low cost and strong versatility. It is widely used in metallurgy, coal, transportation, water and electricity and other departments to transport bulk materials or pieces of goods. such as grain, coal, cement, crushed ore, up to 40m. According to the requirements of the conveying process, can be single conveying, can also be multi machine and other conveyors composed of horizontal or inclined conveying system.

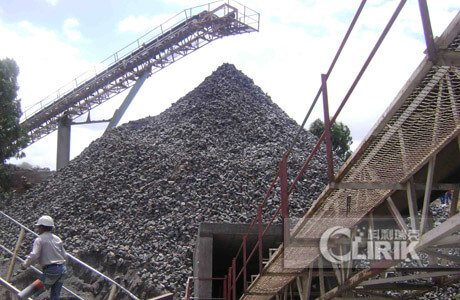

TD Belt Elevator

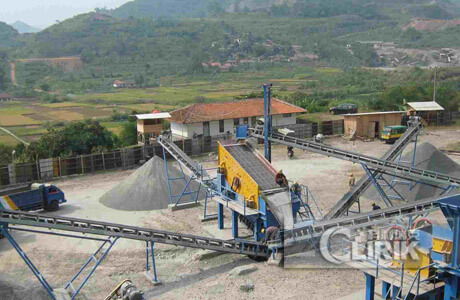

TD Belt Elevator

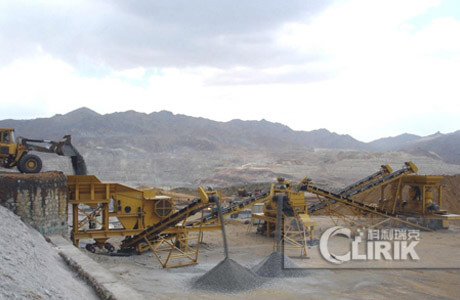

TD Belt Elevator
TD Belt Elevator
TD Belt Elevator
TD Belt Elevator

TD belt elevator according to its hopper’s speed, can be divided into: centrifugal discharge, gravity discharge and hybrid discharge. Centrifugal discharge, with high-speed hopper, is suitable for conveying powder, granular, small block, and abrasive materials. Gravity discharge, with slow-speed hopper, is suitable for conveying the block, materials with a large size and abrasive, such as limestone, clinker.

The traction component of the TD bucket elevator includes a chain, plate chain and tape. The structure and manufacturing of the chain is relatively simple but heavy, also in strong connection with the hopper, suitable for conveying of abrasive materials. plate chain, with strong and light structure, is suitable for lifting heavy hoist, but hinged joints are susceptible to wear. The structure of the tape is relatively simple, but not suitable for conveying abrasive materials. The temperature of material to be conveyed should be lower than 60 ° C for ordinary tape, 80 ° C for steel-rope tape, 120 ° C for heat-resistant tape, and 250 ° C for chain, plate chain.

Product Benefit Of TD Belt Elevator

TD Belt Elevator

1.With observation hole and the tensioning device, high output, stable performance.

2.With small drive power, inflow-type feed, induction-type discharge, Large-capacity hopper, intensive layout; almost no recalculating scrap.

3.Base with arc –shaped bottom, minimal residual materials, more convenient cleaning.

4.Barrel with special combination folding process, high strength, good sealing.

5.Power adjustable according to the lifting height.

Product Parameter Of TD Belt Elevator

TD belt elevators are available in a variety of models.

Model TD160 TD250
Bucket Shape Q H Zd Sd Q h Zd Sd
carrying capacity (m3/h) 5.4 9.6 9.6 16 12 22 23 35
Bucket Width(mm) 160 250
Bucket volume (L) 0.5 0.9 4.2 1.9 1.3 2.2 3.0 4.6
Pitch of Bucket (mm) 280 350 360 450
Tape Width(mm) 200 300
Bucket Speed(m/s) 1.4 1.6
Material Size(mm) 25 35


Model TD315 TD400
Bucket Shape Q H Zd Sd Q H Zd Sd
carrying capacity (m3/h) 17 30 25 40 24 46 41 66
Bucket Width(mm) 315 400
Bucket volume (L) 2 3.6 3.8 5.8 3.1 5.6 5.9 9.4
Pitch of Bucket (mm) 400 500 480 560
Tape Width(mm) 400 500
Bucket Speed(m/s) 1.6 1.8
Material Size(mm) 45 55


Model TD500 TD630
Bucket Shape Q H Zd Sd Q H Zd Sd
carrying capacity (m3/h) 38 70 58 92 X 85 89 142
Bucket Width(mm) 500 630
Bucket volume (L) 4.8 9 9.3 15 X 14 14.6 23.5
Pitch of Bucket (mm) 500 625 710 710
Tape Width(mm) 600 7
Bucket Speed(m/s) 1.8 1.8
Material Size(mm) 60 55


Model D160 D250 D350 D450
Bucket Shape Q S Q S Q S Q S
carrying capacity (m3/h) 4.7 8 18 22 25 42 50 72
Bucket Width(mm) 160 250 350 450
Bucket volume (L) 0.65 1.1 2.6 3.2 7 7.8 14.5 15
Pitch of Bucket (mm) 300 400 500 640
Tape Width(mm) 200 300 400 500
Bucket Speed(m/s) 1 1.25 1.25 1.25
Material Size(mm) 25 35 45 55

 Note: Bucket Capacity above is calculated capacity and Carrying Capacity is calculated at the filling coefficient of 0.6.

Product Maintenance of TD belt elevator

1. Operating procedures.

(1) The operator should be familiar with the performance characteristics and instructions of the TD belt elevator, and master the operation process and safety regulations of the device.

(2) Before starting the TD belt elevator, the operator should check whether the fasteners of the equipment are tight, if found loose should be tightened in time.

(3) Check whether there is oil in the reducer of the TD belt elevator. If there is no oil, add oil and check whether there is oil in each lubrication point.

(4) Check whether the belt is missing hopper or hopper is loose. If it is found, deal with it in time.

(5) Check whether the traction belt runs off course, stretches and tears. If there is any problem, stop the machine on time.

(6) Check whether there is material blockage at the bottom of the machine. If there is, it should be cleaned in time to avoid overload operation of the equipment and damage to other parts.

(7) Check the transmission device, whether the transmission belt is elongated, if found, should be adjusted or replaced.

2. Maintenance.

(1) TD belt elevator lift machine drive reducer work for three months, need to change the oil once.

(2) Each lubrication point should be lubricated with grease every month.

(3) It is found that the conveyor belt of the belt bucket lift machine is broken, which should be treated or replaced in time.

(4) Check whether the anti-skid device of the TD belt elevator is worn regularly. If damaged, it should be dealt with in time.

Introduce The Manufacturer Of TD belt elevator

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.


For more information, please click here and consult us.

So far, we have established a whole production chain, the products cover micro powder grinding mill, high pressure grinding mill, Europe a version coarse powder grinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on. They are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on.
