Focus on the field of micro powder grinding !
Processing ability: 1-45 t/h
Fineness: 325-3000 mesh
Max feeding size: 10-25mm
Range of application: Mica,fluorite, bamboo, gypsum, talc, dolomite, silica, graphite, mica, limestone, calcium carbonate, quartz, calcite, kaolin, bamboo, carbon black, bentonite, illite, pyrophyllite, vermiculite, sepiolite...
The mica powder ultrafine grinding mill production line is mainly suitable for grinding various non-flammable and flammable materials with a Mohs hardness below 9 and a humidity below 6% in industries such as building materials, chemicals, fertilizers, metallurgy, mining, refractory materials, ceramics, steel, thermal power, and coal. The fineness of the finished product can be adjusted from 325 mesh to 3000 mesh.

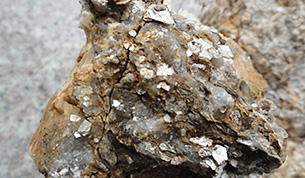

Mica is a rock-forming mineral, usually in the form of pseudo-hexagonal or rhombic plate, flake, and columnar crystals. The color varies with the chemical composition and becomes darker mainly with the increase of Fe content.
The characteristics of mica are insulation, high temperature resistance, luster, stable physical and chemical properties, good heat insulation, elasticity and toughness.
The most commonly used in industry is muscovite, followed by phlogopite. It is widely used in building materials industry, fire protection industry, fire extinguishing agent, welding rod, plastic, electrical insulation, papermaking, asphalt paper, rubber, pearlescent pigments and other chemical industries.
The grinding chamber of the mica powder ultrafine grinding mill contains a set of rotating and stationary grinding discs. These discs create a high-speed collision between the mica particles, leading to their comminution.
The rotation of the grinding discs generates centrifugal force, which throws the mica particles towards the outer periphery of the grinding chamber.
As the mica particles move towards the periphery, they collide with each other due to the centrifugal force. These collisions lead to the breakage of the particles into smaller sizes. Additionally, there is friction between the particles, further contributing to the grinding process.
The ground mica particles are carried upward by the airflow into the classifier system. The classifier separates the finer particles from the coarser ones, ensuring that only the desired ultrafine particles are collected.
The airflow, induced by a fan, helps in transporting the mica particles through the mill and into the classifier. The finer particles that meet the required size criteria are collected as the final product, while coarser particles are returned to the grinding chamber for further comminution.
The ultrafine mica powder is collected in a separate container or bag for further processing or packaging.
Mica processing and production process
Mica ore flotation is used to recover mica and fine-grained mica below 14 mesh in pegmatite and mica schist. In my country, the flotation of mica ore has not been applied in production. The winnowing method is suitable for areas lacking water sources and has been used in actual production.
The first stage
Ore beneficiation, flotation and winnowing of mica.
The second stage
① Mica and gangue are sorted by the difference in surface physical and chemical properties.
② Crushing → screening and classification → wind selection.
The third stage
① The ore is crushed and ground to dissociate the mica monomer. Under the action of the agent, the mica becomes a foam product and separates from the gangue.
② After the ore is crushed, the mica basically forms a flake. The gangue minerals feldspar and quartz are massive particles.
The fourth stage
Break up the packaging for the finished product.
Mica powder ultrafine grinding mills are designed for high-efficiency comminution, ensuring that a significant portion of mica particles is reduced to ultrafine sizes in a single pass through the mill.
Narrow Particle Size Distribution
The grinding process in Mica powder ultrafine grinding mills is carefully controlled to achieve a narrow particle size distribution. This is crucial for applications where a specific particle size range is required.
The mill is often adjustable, allowing operators to customize the fineness of the mica powder product. This flexibility is important for meeting specific customer requirements and diverse application needs.
The design of mica powder ultrafine grinding mills maximizes the yield of ultrafine mica powder from the raw material. This is achieved through efficient grinding and particle separation processes.
Mica powder ultrafine grinding mill are designed to be energy-efficient. They utilize advanced technologies and materials to minimize energy consumption during the grinding process.
Low Maintenance Requirements
Many ultrafine grinding mills are designed for low maintenance requirements, reducing downtime and operational costs. This is achieved through the use of durable materials and efficient component design.
Mica powder ultrafine grinding mill are versatile and can process a variety of materials in addition to mica. This versatility makes them suitable for use in different industries and applications.
The controlled grinding process ensures consistent and reproducible product quality. Manufacturers can rely on the Mica powder ultrafine grinding mill to produce mica powder with uniform characteristics.
Closed System Design
Mica powder ultrafine grinding mills are designed as closed systems, minimizing the risk of product contamination and ensuring a clean and controlled processing environment.
Mica powder ultrafine grinding mill incorporate features for environmental sustainability. This may include dust collection systems and energy-efficient components.
Advanced Control Systems
Mica powder ultrafine grinding mills come equipped with advanced control systems that allow for precise adjustment of process parameters, contributing to optimal performance and product quality.
Mica powder ultrafine grinding mills can often be scaled up or down to accommodate different production capacities, making them suitable for both laboratory-scale testing and large-scale production.

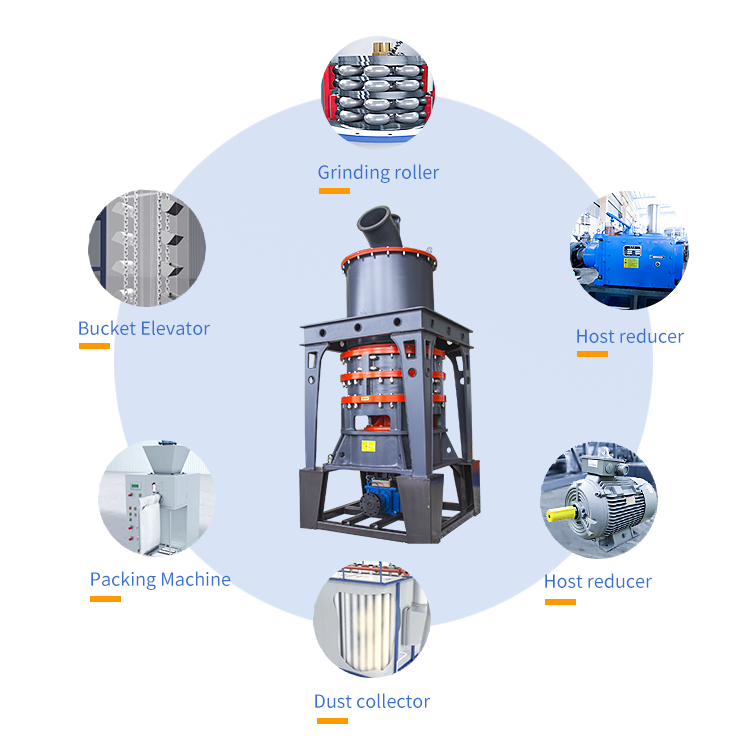

HGM Ultrafine grinding mill
Fineness: 150-3000 mesh
Output: 0.2-45 t/h
High productivity, low operating cost.
Product fineness is high, 325-3000 mesh adjustable, d97≤5μm.
High equipment stability, high level of environmental protection.
