Limestone Powder Raymond Mill
Processing ability: 1-30t/h
Fineness: 50-325 mesh
Max feeding size: 20mm
Range of application: Limestone,Calcium Carboante,Gypsum,Kaolin,Glass,Bamboo, Carbon Black,Calcite,Graphite...
- +8613917147829
- sales@clirik.com
Focus on the field of micro powder grinding !
Processing ability: 1-30t/h
Fineness: 50-325 mesh
Max feeding size: 20mm
Range of application: Limestone,Calcium Carboante,Gypsum,Kaolin,Glass,Bamboo, Carbon Black,Calcite,Graphite...
Table of Contents
Limestone powder Raymond mill, also known as limestone powder Raymond grinding mill, limestone powder Raymond roller mill and limestone powder Raymond grinder.
Limestone powder Raymond mill has the advantages of high efficiency, low energy consumption,small footprint, less capital investment and so on. Therefore, it is widely used in the processing of non-metallic minerals.
Such us: mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc.Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, etc.
| Model | Roller | Ring | Feeding Size(mm) |
Finished Size(mm) |
Mill System Power(KW) |
Capacity (t/h) |
Overall Dimension (mm) |
|||
| Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter (mm) |
Height (mm) |
||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1.0-3.0 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12.0 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16.0 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8.0-20.0 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28.0 | 11550*9500*1050 |
1.Limestone powder Raymond mill sitting type installation, the ground part is 50% of the height of the conventional mill, decreases the height of the plant, saves the investment of the plant, more conducive to equipment maintenance.
2.Limestone powder Raymond mill Roller bearing seal is a new type of seal, which is maintenance free and oil free. Eliminate bearing powder greatly reduces equipment maintenance costs.
3.Limestone powder grinding mill the hierarchical cavity adopts a suspension structure, which can automatically lift and shift to reduce the resonance of equipment, reduce noise and improve the convenience of maintenance.
4.Limestone powder Raymond mill innovative design of rollers and rings, optimal occlusion method of circular arc form, compared with the traditional old Raymond mill, reducing the material through the grinding zone, falling speed rolling grinding time was prolonged, both the Raymond mill feed particle size for the broad and superfine mill ultrafine crushing function, one pace reaches the designated position, ultrafine crushing, grinding, fineness can reach D90:10 um.
5.Limestone powder Raymond mill rotary boom installation structure of the classifier can prevent the resonance between the host and the classifier, decrease the vibration of the equipment, reduce the noise of operation, avoid the investment of lifting and maintenance tools, open maintenance operation, and enhance the convenience of operation.
6.Limestone powder raymond roller mills the middle tangential swirling air inlet, so that the material in the grinding and grading chamber is vortex type rising state, more conducive to the extraction of coarse powder, reduce fan energy consumption, reduce production costs.
7.Limestone powder raymond grinder medium pressure pulse dust cleaning bag type dust collector, sealed welding, total air leakage rate & LT; 2%. It has the characteristics of small structure volume, large filtration area, long service life and suitable for ultrafine powder filtration. The total collection efficiency is more than 99.99%, and the dust emission concentration is less than 30mg/m.
8.Limestone powder Raymond mill The induced draft fan provides the power air flow for the system, which is connected by the suction way of the high-pressure centrifugal fan. Ensure that all links run under negative pressure.

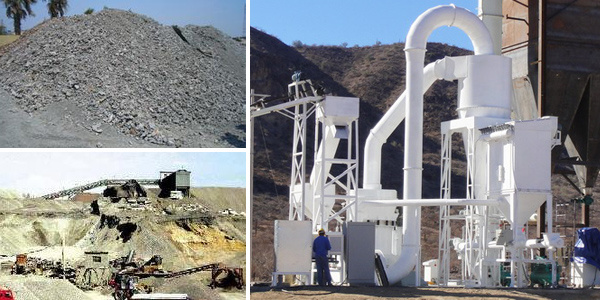

1.The whole structure of limestone powder Raymond mill machine mainly includes the host, analysis machine, plumbing fixtures and the blower. According to user needs, it can be equipped with crusher, elevator, electromagnetic vibrating feeder, electric control cabinet etc.
2.After materials are crushed to the desired particle size, enter into the storage hopper by the elevator, and then through vibrating feeder enter into the grinding chamber of Raymond mill uniform continuously.
3.Due to the centrifugal force when rotating, the rollers swings outward, pressed on the grinding ring, shovel blade scoop up materials, then sent them between grinding roller and grinding ring, due to the grinding roller rolling to achieve crushing purpose.
4.After grinding material, the powder along with the circulating air which is made by blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into the finished product cyclone powder collector, then discharges powder tube, that is the finished product.
5.In the grinding chamber of limestone powder Raymond mill, because there is certain moisture in the grinded material, when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill works under negative pressure. The increased air flow enters into the dust through the duct, and at last enters into the atmosphere after purification.
Shanghai Clirik Machinery Co., Ltd. has a professional technical force and perfect production capacity. The company’s products are widely used in mining, road construction, bridge construction, housing construction and other industries, mill, crusher, modified machine, ball mill, feeder, vibrating screen, sand washing machine, conveyor and other equipment and products. All passed ISO9001:2008 standard quality certification.
Clirik is a scientific and technological enterprise specializing in the research, development and production of industrial powder making, construction sand making and mining crushing equipment. It is a mining technical equipment manufacturer, located in the core economic zone of the Yangtze River Delta with convenient water, land and air- Shanghai. It is a technical enterprise that effectively combines science and technology with traditional technology.
With super product, well-deserved reputation and excellent service, Clirik has won lots of certificates and praise from our customers. Depend on this integrity, CLIRIK is always very popular among owners of quarry and mining. Won a number of patent certificates and honorary awards !

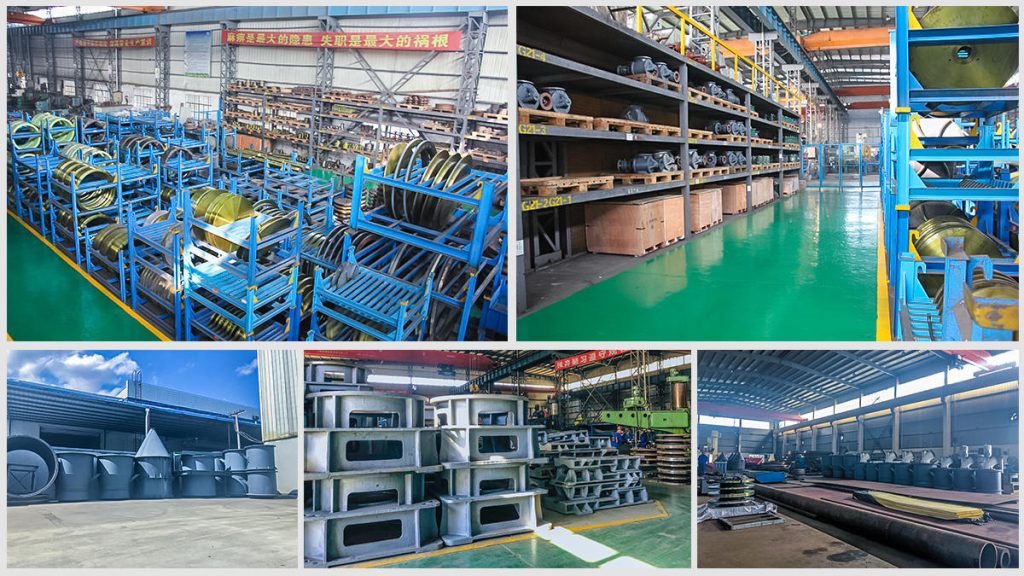

Our workshop adopts a 5S management system for management. The staff of the workshop keep the passageway and worktable clean. The finished product equipment area, operation area and storage area of the workshop are reasonably divided. Production site reasonable and effective planning, organization, coordination, control and detection, to achieve high quality, efficient, low consumption, balanced, safe and civilized production. To provide customers with higher quality grinding equipment.
