Fluorite powder Raymond mill

Product introduction of fluorite powder Raymond mill

Fluorite powder Raymond mill is a new type of grinding equipment which is based on the traditional Raymond mill. It is suitable for grinding non-metallic minerals such as fluorite, barite, gypsum, talc, etc. The fineness of the finished product can be adjusted between 50-325 mesh, and the production capacity is higher.

Compared with the traditional Raymond mill, the fluorite powder Raymond mill has the advantages of high grinding efficiency, low power consumption, small footprint, and environmental protection. It adopts a new type of sealing device to ensure that there is no dust leakage during the grinding process, which greatly reduces the pollution to the environment.

The fluorite powder Raymond mill is widely used in the field of non-metallic mineral grinding and has a good market reputation. It can be used as a grinding equipment for grinding fluorite powder, which is a commonly used industrial mineral. The fluorite powder Raymond mill can grind 50-325 mesh ore powder, which can meet the needs of users with different fineness requirements.

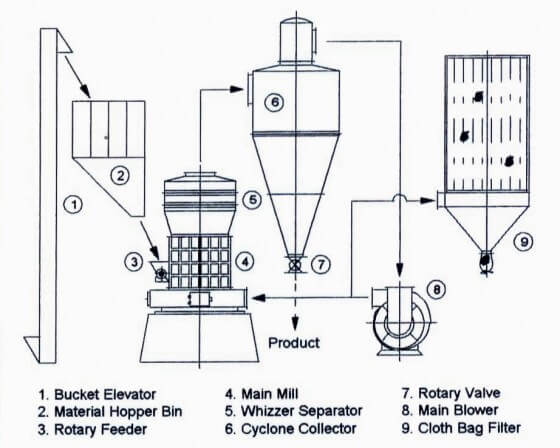

Working principle of fluorite powder Raymond mill

The fluorite powder Raymond mill uses the principle of mechanical grinding to crush the raw ore, and then uses the airflow to transport and separate the ground powder, finally achieving the purpose of producing high-quality fluorite powder.

1. Crushing: The raw ore is crushed to the required size by a jaw crusher, and then the crushed material is transported to a storage bin by a bucket elevator.

2. Grinding: The material in the storage bin is uniformly and continuously fed into the main machine of the Raymond mill by a feeder. The grinding roller and grinding ring in the main machine rotate at high speed, and the material is ground by the action of the roller and ring.

3. Powder selection: The ground material is blown into the powder concentrator by the airflow of the blower. The powder concentrator separates the fine powder that meets the requirements from the coarse powder that does not meet the requirements.

4. Collection: The fine powder that meets the requirements is collected by the dust collector, and the coarse powder that does not meet the requirements falls back into the main machine for re-grinding.

5. Finished product: The finished product is collected by the finished product bin or packaged by a packaging machine for sale.

Product advantage of fluorite powder Raymond mill

The fluorite powder Raymond mill is an efficient and reliable tool for the processing of fluorite ore, and it offers a range of advantages that make it a popular choice for many industries.

High efficiency

The fluorite powder Raymond grinding mill is equipped with a high-efficiency pulse dust collector, which reduces the amount of dust and improves the grinding efficiency.

High capacity

The fluorite Raymond mill has a large capacity, which enables it to process a large amount of fluorite powder.

Energy-saving

The fluorite powder Raymond grinding mill has a low energy consumption rate, which can save energy and reduce operating costs.

Environmental protection

The fluorite Raymond mill adopts a sealed gearbox and belt wheel, which reduces noise and prevents dust from escaping, making it an environmentally friendly choice.

Wide range of applications

The fluorite powder Raymond mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, thermal insulation materials, etc.

Product maintenance of fluorite powder Raymond mill

To maintain the fluorite powder Raymond mill, the following maintenance steps can be taken:

1. Regularly check the lubrication of the fluorite powder Raymond mill.

The fluorite powder Raymond mill has many lubrication points, including the bearing, grinding roller, and grinding ring. Regularly check the lubrication of these points to ensure that they are well lubricated and to prevent damage to the equipment due to insufficient lubrication.

2. Regularly check the wear of the grinding ring and grinding roller.

The grinding ring and grinding roller are the main wearing parts of the fluorite powder Raymond grinding mill. Regularly check the wear of these parts, and replace them in time if they are seriously worn to avoid affecting the grinding efficiency of the equipment.

3. Regularly check the fan and air duct of the fluorite Raymond mill.

The fan and air duct are important components of the fluorite powder Raymond mill, which are responsible for the transportation of materials and the circulation of air. Regularly check the fan and air duct to ensure that they are unobstructed and that the air flow is normal.

4. Regularly check the electrical system of the fluorite powder Raymond mill.

The electrical system of the Raymond mill includes the motor, control cabinet, and various electrical components. Regularly check the electrical system to ensure that it is in good condition and that there are no loose connections or abnormal phenomena.

5. Regularly clean the fluorite powder Raymond mill.

During the operation of the fluorite powder Raymond mill, dust and other impurities will accumulate on the surface of the equipment, affecting the normal operation of the equipment. Regularly clean the equipment to ensure that it is in a clean and tidy state.

By following these maintenance steps, the service life of the fluorite powder Raymond mill can be extended, and the grinding efficiency and quality of the equipment can be improved.

Product parameter of fluorite powder Raymond mill
