Focus on the field of micro powder grinding !
Processing ability: 1-35 t/h
Fineness: 80-500 mesh
Max feeding size: 35 mm
Range of application: Montmorillonite, calcium carbonate, limestone,dolomite,gypsum,carbon black,zeolite,calcite,feldspar,fluorite,talc...
Table of Contents
The Montmorillonite Powder Enhanced Roller Grinding Mill is a type of equipment used for fine grinding of minerals and materials. Montmorillonite, a type of clay mineral, is often used in various industrial applications due to its unique properties such as high cation-exchange capacity, swelling ability, and absorption capabilities. Enhancing a roller grinding mill for montmorillonite powder involves specific modifications to improve efficiency and output quality.
High Pressure Grinding Rolls (HPGR)
1. Application of high pressure to the grinding rolls can increase the output and efficiency of the mill.
2. Enhanced pressure can lead to finer particle sizes and more uniform distribution.
Advanced Material Handling
1. Efficient feeding mechanisms to ensure uniform material distribution.
2. Automated systems to control the flow and prevent clogging.
Precision Rollers
1. High-quality rollers made from wear-resistant materials.
2. Precision-engineered rollers to maintain consistent grinding pressure and output quality.
Optimized Mill Design
1. Robust structural design to handle the increased stress and pressure from grinding montmorillonite.
2. Enhanced cooling systems to prevent overheating and ensure consistent performance.
Particle Size Control
1. Advanced classifiers and separators to ensure the desired particle size distribution.
2. Real-time monitoring and adjustment systems for maintaining optimal grinding conditions.
Dust Control and Collection
1. Efficient dust extraction systems to minimize airborne particles.
2. Collection systems to capture and recycle fine particles, reducing waste.
1. Improved Grinding Efficiency: Montmorillonite powder enhanced roller grinding mill can lead to faster processing times and higher throughput.
2. Higher Product Quality: Uniform particle size distribution and reduced contamination improve the quality of the montmorillonite powder.
3. Reduced Operational Costs: Efficient energy usage and minimal maintenance requirements lower the overall cost of operation.
4. Versatility: Ability to handle various grades and types of montmorillonite as well as other similar minerals.
5. Environmental Compliance: Dust control and waste reduction features help in complying with environmental regulations.
Montmorillonite powder reinforced drum mill is a grinding equipment that uses montmorillonite powder as a reinforcing material, with the advantages of high efficiency and low wear. It can be used in multiple fields, including but not limited to the following aspects:
1. Ceramic industry: In the production process of ceramic products, it is used for grinding and mixing ceramic powder to ensure the uniformity and fineness of ceramic materials.
2. Mineral processing: It is used for crushing and refining of ores, processing large pieces of ore into fine particles for subsequent mineral processing and smelting processes.
3. Building materials industry: In the production process of building materials such as cement and lime, it is used for crushing and homogenizing raw materials to ensure the stability and quality of the products.
4. Electronic materials: It is used for grinding and fine processing of electronic component materials, such as the preparation of battery materials and semiconductor materials, to ensure the purity and performance of the materials.
Montmorillonite Powder Application
1. Ceramics and Porcelain Manufacturing: Fine montmorillonite powder is used to enhance the properties of ceramic products.
2. Cosmetics and Pharmaceuticals: Used as an ingredient in skincare products and as an excipient in pharmaceutical formulations.
3. Construction Materials: Used in the production of lightweight aggregates and specialized construction materials.
4. Agriculture: Enhances soil properties and used as a carrier for fertilizers and pesticides.
Montmorillonite powder reinforced drum mill is widely used in these fields that require efficient grinding and mixing due to its good grinding effect and low wear characteristics.

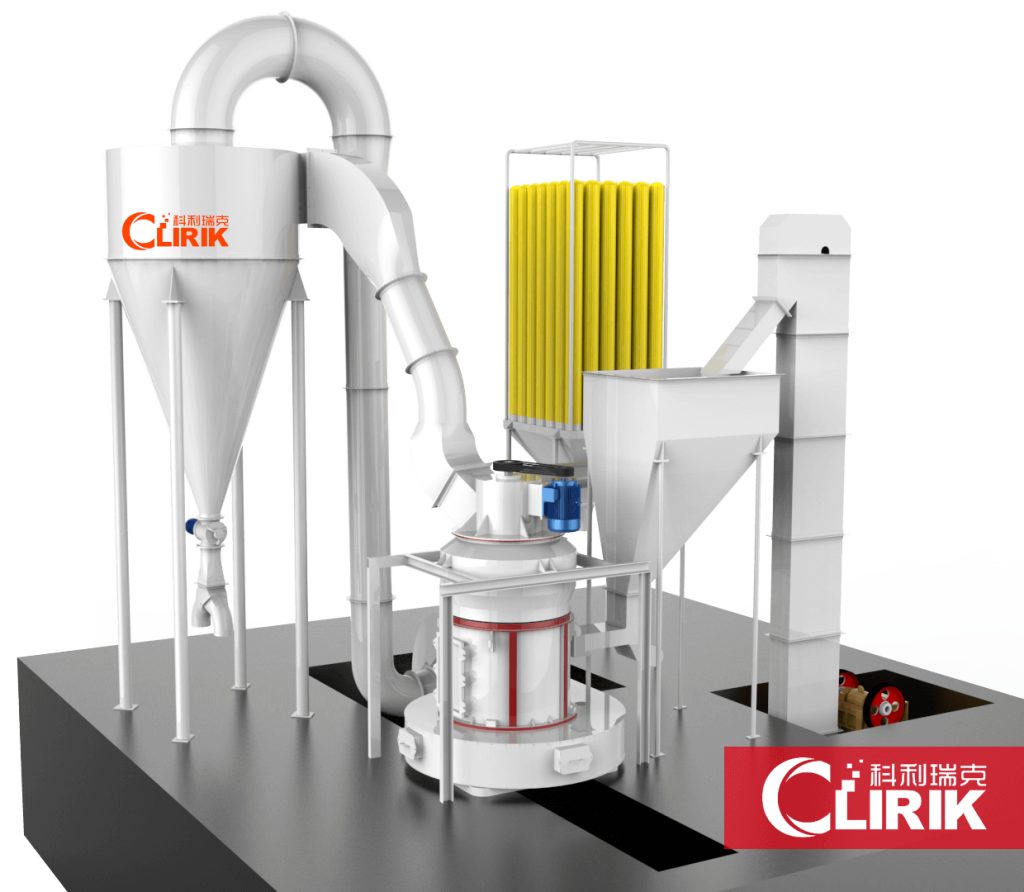

The standard configuration of the CLRM series enhanced roller grinding mill consists of main unit, reducer, powder classifier, cyclone percolator, dustcleaner, blower, electrical cabinet and pipes. The optional accessories include a crusher, bucket elevator, feeder.
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder is carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by a return pipe on the top of a cyclone collector. the whole airflow system is a sealed circulation and is circulated under positive and negative air pressure.
| Model | Roller | Ring | Main Shaft Speed (r/min) |
Feeding Size (mm) |
Finished Size (mesh) |
Motor (kw) |
Capacity (t/h) |
||
| Quantity (piece) |
Size (mm) |
External Dia (mm) |
Height (mm) |
||||||
| CLRM9720 | 3-4 | 320*200 | 1077 | 200 | 145 | <20 | 80-500 | 45*15*37 | 1-7 |
| CLRM1280 | 3 | 370*2*40 | 1280 | 240 | 125 | <20 | 80-400 | 75*15*55 | 2-12 |
| CLRM1300 | 4 | 410*2*80 | 1390 | 280 | 112 | <20 | 80-400 | 110*22*90 | 3-15 |
| CLRM1620 | 4 | 450*300 | 1620 | 300 | 102 | ><20 | 80-400 | 160*30*132 | 5-20 |
| CLRM1700 A | 4 | 510*300 | 1700 | 300 | 102 | <30 | 80-325 | 185*37*160 | 6-25 |
| CLRM1720 | 4 | 510*300 | 1850 | 300 | 92 | <35 | 80-325 | 250*45*185 | 6-25 |
| CLRM1900 A | 4 | 600*300 | 1900 | 300 | 92 | <35 | 80-325 | 250*45*220 | 8-32 |
| CLRM2150 | 4 | 600*300 | 2150 | 300 | 85 | <35 | 80-325 | 315*45*280 | 12-35 |
1. Regular inspection and maintenance of rollers and grinding mechanisms.
2. Periodic replacement of wear parts to maintain efficiency.
3. Monitoring of system parameters to prevent overheating and mechanical failure.
4. Training for operators to ensure optimal use of the mill and adherence to safety protocols.
By focusing on these features and benefits, an enhanced roller grinding mill for montmorillonite powder can significantly improve industrial processes, providing high-quality output with increased efficiency and reduced costs.
