Focus on the field of micro powder grinding !
Processing ability: 1-45 t/h
Fineness: 150-2500 mesh
Max feeding size: 10-25mm
Range of application: Kaolin, Limestone, Calcium Carbonate, Quartz, Calcite, Kaolin, Fluorite, Gypsum, Bentonite, Dolomite...
Table of Contents

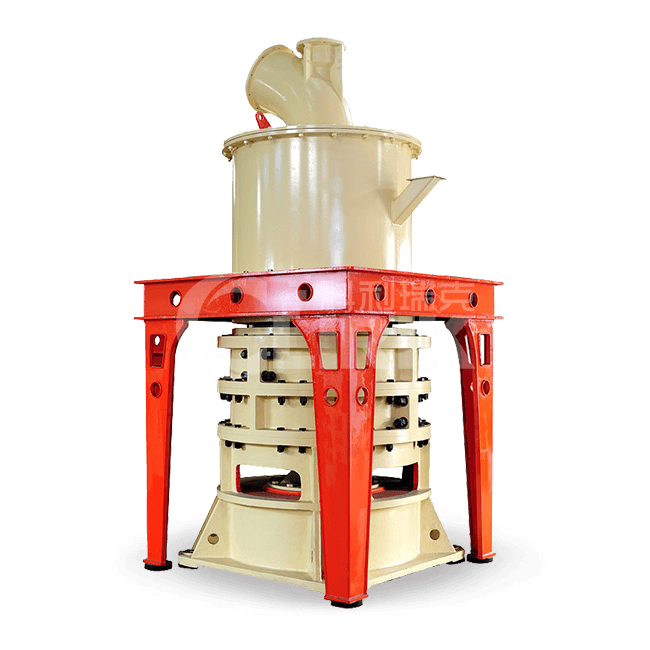

Kaolin Ultrafine Powder Grinding Mill is equipment designed for customers who need to make koalin ultra-fine powder. This machine is equipped with efficient pulse dust collector and muffler, which can reduce dust and noise. And the whole production won’t take effect on environment.
Compared with jet mill, mixing grinder and ball mill of same finished product size and motor power, HGM Micro-Powder Mill has double capacity and saves 30% energy.
The product size can be adjusted between 325 mesh to 2500 mesh (47-5micron).
Forged by special material, the ring and roller can be used for about one year while grinding calcium carbonate.
The application of pulse dust collector and muffler greatly reduce dust pollution and noise.
In addition to grinding kaolin, the kaolin ultrafine powder grinding mill can also grind other materials. Such as calcite, chalk and limestone, dolomite, bentonite, talc, mica, magnesium stone, illite and pyrophyllite, vermiculite, sepiolite, attapulgite, pale spot, barite, gypsum, alum stone, black lead, fluorite, phosphate, potash, pumice, etc.More than 200 kinds of mohs hardness under level 6 not inflammable, explosive brittle material.
Kaolin ultrafine powder gridning mill the motor drives the main shaft and every turnplate through the reducer.The reducer drives dozens of rollers to rotate against race way of ring through pin. Small material crushed by hammer crusher is transported into hopper by elevator, and then vibrating feeder shall feed material to the central part of upper turnplate evenly. The material falls to circle under the centrifugal force and comes down to raceway of ring to be crushed into powder. After grinded in the first race way, the material goes to the second and third turnplate. The blower inhales the external air into the mill and carries the powder after third turnplate into powder-separator. Turbine in the separator makes the coarse powder drop down and regrinded and the fine powder shall go into cyclone powder collector together with air current and go down through discharge valve as final product.
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |
Barite powder ultrafine grinding mill manufacturer Shanghai Clirik Machinery Co., Ltd is located in Pudong New Area, Shanghai, China. It is a professional enterprise specializing in research and development, production and sales of all kinds of mining equipment. The company has formed a full set of modern production lines, equipped with intelligent, standardized testing and control laboratory, with research and development, production, sales, service in one of the professional team.arite
Our company has obtained a number of product patent certificates. The company attaches great importance to independent intellectual property development, independent intellectual property protection, and continuously expands the investment in product new technology research and development, and actively stimulates the innovation consciousness of research and development personnel.
Our workshop adopts a 5S management system for management. The staff of the workshop keep the passageway and worktable clean. The finished product equipment area, operation area and storage area of the workshop are reasonably divided. Production site reasonable and effective planning, organization, coordination, control and detection, to achieve high quality, efficient, low consumption, balanced, safe and civilized production. To provide customers with higher quality grinding equipment.
The high quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
