Focus on the field of micro powder grinding !
Processing ability: 1-45 t/h
Fineness: 325-2500mesh
Max feeding size: 10-25mm
Range of application: Gypsum, talc, dolomite, silica, graphite, mica, limestone, calcium carbonate, quartz, calcite, kaolin, fluorite, bamboo, carbon black, bentonite, illite, pyrophyllite, vermiculite, sepiolite...
Table of Contents
Gypsum ultrafine powder grinding mill
Gypsum ultrafine powder grinding mill is a new type grinding mill developed by Clirik relying on its technical research and development ability and drawing on the advantages of similar products at home and abroad. With rolling, grinding, impact and other comprehensive mechanical crushing properties such as comprehensive mechanical crushing properties.
This series of ultra-fine grinding mills have the characteristics of large output, low energy consumption, long service life and easy maintenance. This is a perfect choice for customers who like a high return on investment.

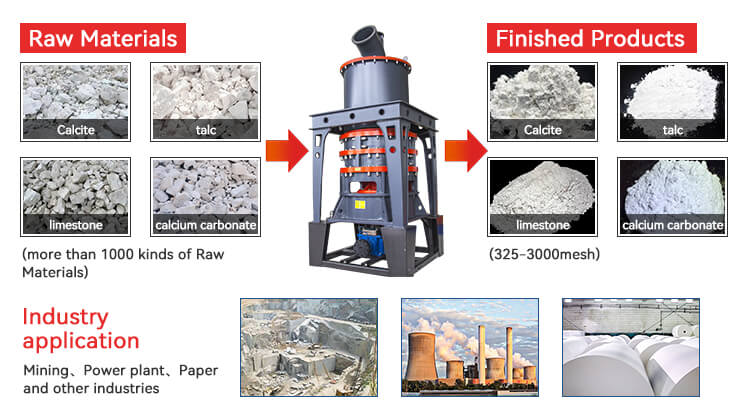

The gypsum ultrafine powder grinding mill can grind non-metallic ore material. Such as calcite, chalk and limestone, dolomite, bentonite, talc, mica, magnesium stone, illite and pyrophyllite, vermiculite, sepiolite, attapulgite, pale spot, barite, alum stone, black lead, fluorite, phosphate, potash, pumice, etc.More than 1000 kinds of moh‘s hardness under level 6 not inflammable, explosive brittle material.
| Model | HGM80 | HGM80A | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Ring Diameter(mm) | 800 | 800 | 900 | 1000 | 1000 | 1250 | 1680 |
| Ring Number (PCS) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Input Size (mm) | ≤10 | ≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 |
| Adjustable range of finished product (mesh) | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 | 150-3000 |
| Capacity (t/h) | 0.5-5.5 | 0.5-5.5 | 0.8-6.5 | 1.2-10 | 1.2-11 | 2.5-20 | 5-45 |
| Outlet Size L*W*H (mm) | 8605*4139*6050 | 10454*3393*6626 | 11735*3952*7525 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 |
| Main motor power (kw) | 75 | 75 | 55*2 | 132/75*2 | 132/75*2 | 185 | 315 |
| Unit kw | HGM80 | HGM90L | HGM100L-Ⅱ | HGM100P | HGM125L | HGM1680L |
| Main unit | 75 | 2*45 | 132-150 | 132-150 | 185-200 | 315 |
| Classifier | 18.5 | 18.5-30 | 30-37 | 30-37 | 75 | 132 |
| Blower | 45 | 55 | 75 | 75 | 2*45-2*55 | 2*75-2*90 |
| Crusher | 18.5 | 18.5 | 18.5 | 18.5 | 45 | 75 |
| Bucket Elevator | 3 | 3 | 4 | 4 | 4 | 7.5 |
| Belt Conveyor Feeder | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 |
| Discharging Valve | 2*0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 2*1.5 |
| Air Compressor | 11 | 15 | 22 | 22 | 37 | 55 |
Gypsum powder ultrafine grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
You can learn how the gypsum ultrafine powder grinding mill works by watching the video.
1. Gypsum ultrafine powder grinding mill meets client’s requirements for different fineness powder, finished powder fineness is adjustable and at stable quality.
2. Built-in high efficiency classifier, higher classification accuracy, better classification effect.
3. The Gypsum powder ultrafine grinding mill uses a new upgraded main machine transmission mechanism. It has higher output, lower energy-consumption, and easy maintenance.
4. All main wear parts use quality abrasion-resisting alloy steel, and have a longer working life.
5. The whole system works under negative pressure without dust emission, no coarse particle air pollution, more environment-friendly, higher fineness powder recovery.
6. Smart PLC controlled, remote centralized control, one-button easy operation, intelligent control of feeding material, all the above ensure grinding mill operation stable and high output.
7. The whole grinding mill system with a compact structure could save factory space, with a lower foundation construction cost, it’s a cost-effective investment. High quality gypsum powder grinding mill for gypsum powder production line.

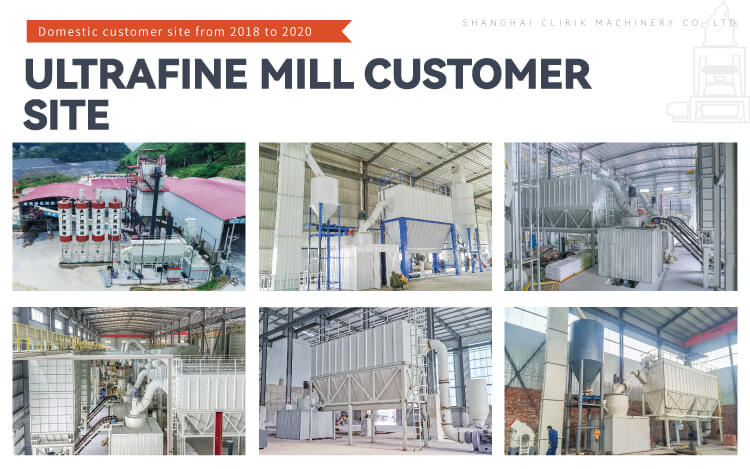

The following picture is the gypsum ultrafine powder grinding mill site of our previous customers. If you want more information, you can click here to contact our customer service staff.
SHANGHAI CLIRIK MACHINERY CO., LTD as a professional enterprise which is specializing in research, manufacture and sales all kinds of mining equipment, We have many agents sell our products all over the world. Our products are widely used in the industry of mining, construction materials, chemicals, metallurgy, transportation, hydraulic engineering and so on. Specially we independently developed HGM series powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. We’ll always follow your steps, pursue your value and achieve your profit.
1.How much is the gypsum ultrafine powder grinding mill?
Our company has various types of gypsum powder grinding equipment. The specific price of the machine needs our sales manager to communicate with you.
You can leave your contact information (email or Whatsapp, phone number), and our sales manager will contact you later.
2. How is gypsum ultrafine powder grinding mill transported?
We can provide express, sea, land and air transportation according to your requirements.
3. What are the terms of payment?
L/C, Western Union, D/P, D/A, T/T, MoneyGram
4. Why choose us?
We not only provide customers with high quality barite grinding equipment, but also provide customers with on-site survey, design and production program, product installation, technical personnel training and other one-stop services.
