Feldspar Powder Ultrafine Grinding Mill - Shanghai Clirik - Mine Mill

Focus on the field of micro powder grinding !

Feldspar Powder Ultrafine Grinding Mill

Processing ability: 1-45 t/h

Fineness: 325-2500 mesh

Max feeding size: 10-25mm

Range of application: Felodspar, mica,fluorite, bamboo, gypsum, talc, dolomite, silica, graphite, mica, limestone, calcium carbonate, quartz, calcite, kaolin, bamboo, carbon black, bentonite, illite, pyrophyllite, vermiculite, sepiolite...

  • +8613917147829
  • sales@clirik.com

Introduction Of Feldspar Powder Ultrafine Grinding Mill

Feldspar powder ultrafine grinding mill is specialized equipment used to grind feldspar into fine and ultrafine powder. Feldspar powder ultrafine grinding mill is crucial in the feldspar industry as they help in producing high-purity feldspar powder, which is essential in various industries such as ceramics, glass, paint, adhesives, plastics, and electronics.

Feldspar Powder Ultrafine Grinding Mill
Feldspar Powder Ultrafine Grinding Mill

Features Of Feldspar Powder Ultrafine Grinding Mill

High Efficiency and Energy Saving: Utilizes multiple layers of grinding rings and rollers to enhance grinding efficiency and reduce energy consumption.

Fine and Ultra-Fine Output: Capable of producing powders with particle sizes from 325 mesh (45 µm) to 2500 mesh (5 µm).

Environmental Protection: Equipped with advanced dust collection systems to minimize dust emissions and reduce environmental impact.
Stable Performance: Robust design ensures consistent performance and long operational life.

Low Maintenance: Designed for easy maintenance with wear-resistant components to reduce downtime.

Adjustable Fineness: The final product’s fineness can be adjusted by changing the speed of the classifier or the airflow rate.

Working Principle Of Feldspar Powder Ultrafine Grinding Mill

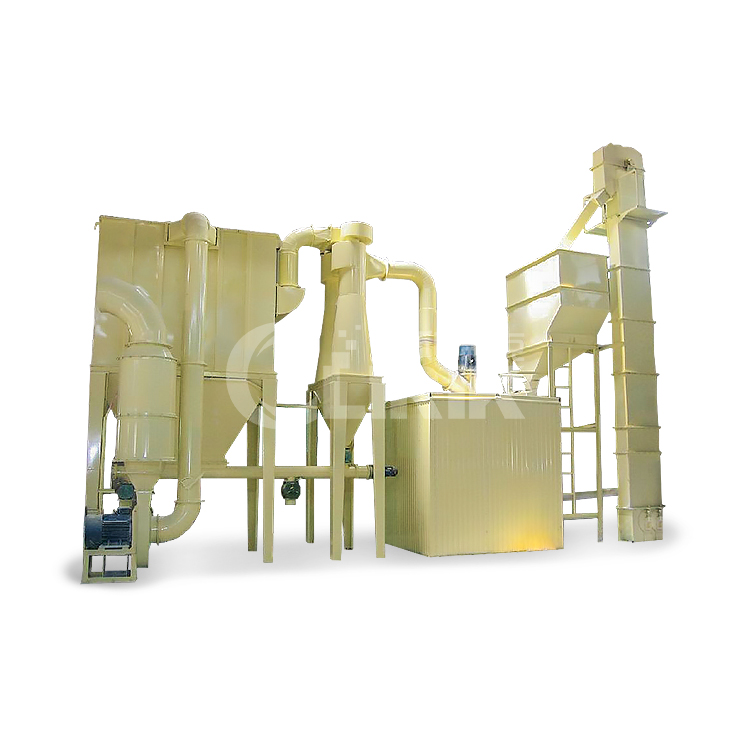

Feldspar powder ultrafine grinding mill typically consists of a main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

The main motor drives the spindle and the turntable, rotating through the reducer. The roller pin on the edge of the turntable drives dozens of grinding rollers to roll in the ring raceway. The large material is broken into small particles by the hammer crusher, and then sent to the storage bin by the elevator. The materials are uniformly sent to the upper distribution plate of the turntable by the electromagnetic vibrating feeder and inclined feeding pipe. When the grinding mill is at work, the main bearing and each dial are driven by electromotor of main equipment through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger.

Considerations for Choosing the Right Model

Material Characteristics: Consider the hardness, moisture content, and initial size of the feldspar.

Desired Output Size: Determine the fineness of the final powder required.

Production Capacity: Select a model that meets your production demands.

Energy Consumption: Evaluate the power requirements and choose an energy-efficient model.

Space and Budget: Consider the available installation space and budget constraints.

The HGM series feldspar powder ultrafine grinding mill is an excellent choice for producing fine and ultra-fine feldspar powders, providing high efficiency, consistent performance, and environmental benefits.

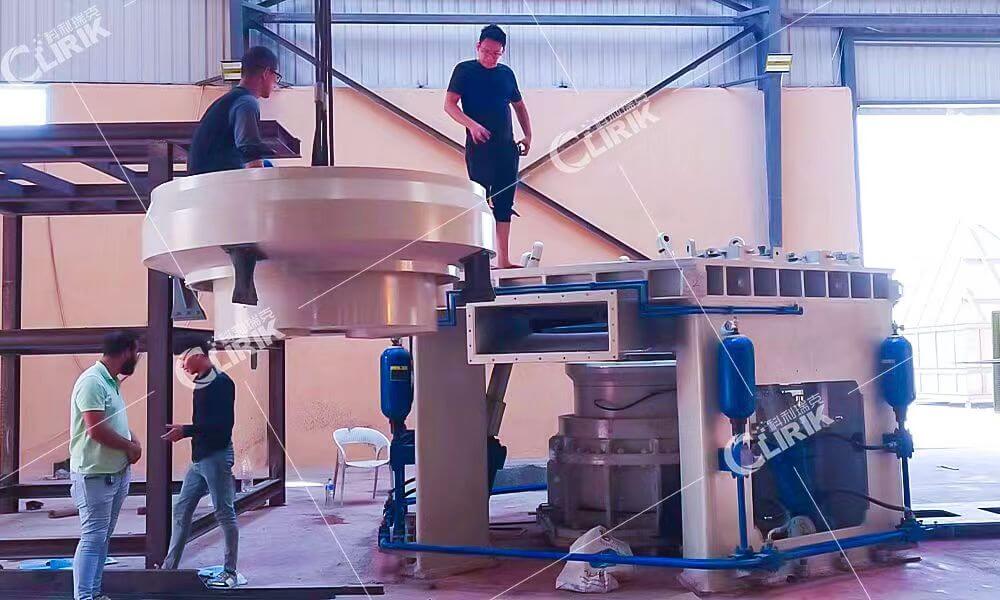

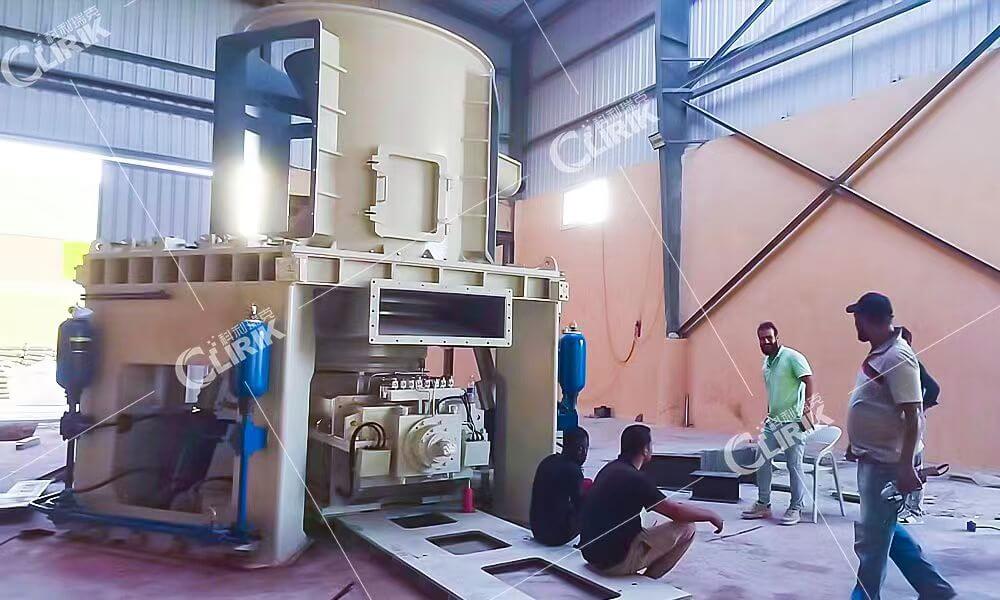

Installation and Operation Of Feldspar Powder Ultrafine Grinding Mill

Site Preparation: Ensure the installation site is stable and can support the mill’s weight. Install necessary foundations.

Assembly: Follow the manufacturer’s guidelines to assemble the main unit, classifier, and other components.

Calibration: Adjust the settings to achieve the desired output size and production capacity.

Operation: Start the mill and gradually feed the feldspar material. Monitor the process to ensure consistent output and adjust parameters as needed.

Maintenance: Regularly inspect wear parts and replace them as necessary. Clean the dust collector and other components to maintain optimal performance.

Feldspar Powder Applications

Ceramics: Producing high-quality feldspar powder for ceramic manufacturing.

Glass: Used as a flux in glassmaking to lower the melting temperature of quartz.

Paints and Coatings: Acts as a filler to improve product properties and reduce costs.

Plastics and Rubber: Enhances mechanical properties and stability of plastic and rubber products.

Adhesives and Sealants: Improves viscosity and strength of adhesives and sealants.

Feldspar Powder
Feldspar Powder

Feldspar powder is a key raw material used in various industrial applications, primarily due to its alumina and silica content.

Chemical Composition: Feldspar is primarily composed of aluminum silicates along with potassium, sodium, and calcium.

Physical Properties: Hardness: 6-6.5 on the Mohs scale.

Density: Typically around 2.56-2.76 g/cm³.

Melting Point: Varies between 1100°C to 1550°C depending on the type.

Appearance: It is usually white or nearly white but can have shades of pink, brown, or grey due to impurities.
