Dolomite Ultrafine Powder Grinding Mill

Processing ability: 1-45 t/h

Fineness: 325-3000mesh

Max feeding size: 10-25mm

Range of application: Dolomite,Gypsum,Graphite,Talc,Mica,Limestone, Calcium Carbonate, Quartz, Calcite, Kaolin, Fluorite, Gypsum, Bentonite...

  • +8613917147829

Product Overview Of Dolomite Ultrafine Powder Grinding Mill

Dolomite ultrafine powder grinding mill is a new type grinding mill developed by Clirik relying on its technical research and development ability and drawing on the advantages of similar products at home and abroad. With rolling, grinding, impact and other comprehensive mechanical crushing properties such as comprehensive mechanical crushing properties. This series of grinding mill have the characteristics of large output, low energy consumption, long service life and easy maintenance.

The dolomite ultrafine mill is suitable for processing the low and intermediate hardness brittle materials which are non-flammable and non-explosive, such as dolomite, calcium carbonate, kaolin, bentonite, talc, mica, attapulgite, barite, gypsum and graphite and so on. It has been widely applied in paint, paper making, pigment, rubber, plastic, padding, cosmetic, chemical supplies and many other industrial fields.

Product Features Of Dolomite Ultrafine Powder Grinding Mill

1.Dolomite ultrafine powder grinding mill Meet client’s requirements for different fineness powder, finished powder fineness is adjustable and at stable quality.

2.Built-in high efficiency classifier, higher classification accuracy, better classification effect.

3.Use new upgraded main machine transmission mechanism, it has higher output, lower energy-consumption, easy maintenance.

4.All main wear parts use quality abrasion-resisting alloy steel, and have a longer working life.

5.The whole system works under negative pressure without dust emission, no coarse particle air pollution, more environment-friendly, higher fineness powder recovery.

6.Smart PLC controlled, remote centralized control, one-button easy operation, intelligent control of feeding material, all the above ensure grinding mill operation stable and high output.

7.The whole grinding mill system with a compact structure could save factory space, with a lower foundation construction cost, it’s a cost-effective investment.​

Working Principle Of Limestone Ultrafine Powder Grinding Mill

Dolomite Ultrafine Powder Grinding Mill

Dolomite ultrafine powder grinding mill the motor drives the main shaft and every turnplate through the reducer. The reducer drives dozens of rollers to rotate against race way of ring through pin.

Small material crushed by hammer crusher is transported into hopper by elevator, and then vibrating feeder shall feed material to the central part of upper turnplate evenly. The material falls to circle under the centrifugal force and comes down to raceway of ring to be crushed into powder. After grinded in the first race way, the material goes to the second and third template.

The blower inhales the external air into the mill and carries the powder after third turnplate into a powder-separator. turbine in the separator makes the coarse powder drop down and regrinded and the fine powder shall go into cyclone powder collector together with air current and go down through discharge valve as final product.

Product Advantage Of Dolomite Ultrafine Powder Grinding Mil

1.Low cost of investment. At the same fineness, less investment, lower cost and shorter recovery cycle than air mill.

2.With the same fineness and power consumption, the output is more than 45% higher than that of air mill and agitation mill.

3.Wear parts low loss, all wear parts are made of high wear resistant materials, than ordinary grinding machine equipment wear parts long service life.

4.The operation of mill cavity is safe and reliable, and the sealing performance is better than that of an ordinary mill.

5.High fineness of finished products, fineness of products can reach 325-3000 mesh range.

6.Environmental protection and pollution. adopt high efficiency pulse type dust collector, the whole equipment has no dust pollution in the operation process, equipped with silencer and silencer room, reduce the noise, in accordance with the international environmental protection standards to produce, to the surrounding environment has played an environmental protection role.

Related Engineering Cases

ultrafine powder grinding mill
ultrafine powder grinding mill
ultrafine powder grinding mill
ultrafine powder grinding mill

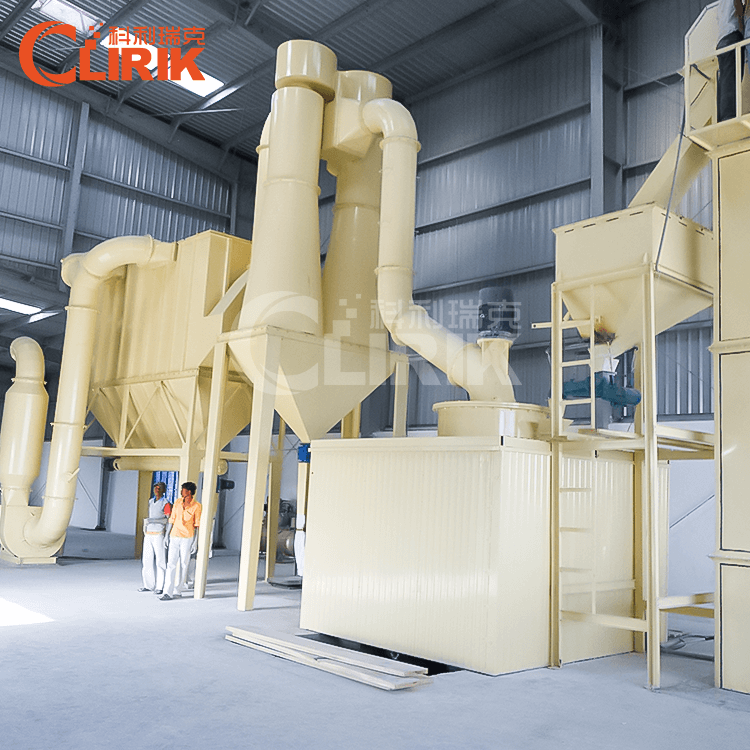

gypsum powder ultrafine grinding mill
gypsum powder ultrafine grinding mill

Product Specifications Of Dolomite Ultrafine Powder Grinding Mill

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Adjustable range of finished product (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315

Introduction Manufacturer Of Dolomite Ultrafine Powder Grinding Mill

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai China as a professional enterprise, which specializes in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

GRINDING MILL IN CHINA !Related Engineering Cases


When you purchase our dolomite ultrafine powder grinding mill, you will receive the following services.

Technical support

Upon receiving the deposit, we will offer the following technical services:

  1. Design for your production line flow and equipment layout, free of charge;
  2. Provide foundation drawings of customer-ordered grinding mills and drawings of related parts, etc;
  3. Technical parameters of peripheral equipment will be supplied;
  4. Free technical suggestions on adjusting of equipment layout and application.
  5. Equipment upgrading (customers need to pay the cost);

​Quality assurance

  1. Strictly conforming to ISO9001-2000 quality management system;
  2. Strict control from purchasing inspection, process inspection to final proofing;
  3. Established several QC departments to execute quality control regulations;
  4. Detailed quality control examples:
    (1) Complete files for quality control and quality feedback;
    (2) Strict inspection for the components of our grinding mills, to assure products are free of damage and avoid rust-eaten and paint peeling off later on.
    (3) Only qualified components will be assembled and total equipment must be inspected completely before sale.

After sale service

  1. We will send our technician to the site to guide equipment installation and commissioning.
  2. During the installation and commissioning, we offer operator training service.
  3. The quality assurance date is one year after commissioning. And after that, we will collect the cost if we provide repairs for your equipment.
  4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
  5. We offer the components with favorable price and perdurable maintenance.
  6. If equipment repairing is needed after the quality assurance date is expired, we will collect maintenance cost.


Because there are 5 different kinds of HGM series dolomite ultrafine powder grinding mills, so our dolomite ultrafine powder grinding mill unit has different prices, I need to ask you for some details for sending you the more suitable quotation:

1.Which kind of material are you going to grind?
(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag; Pebble; Others )

2.What’s the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH < 1 TPH)

3.What’s the granularity of the final products you need?
(in milimeter, micron or mesh)

4.What’s the max input size of the material?
(In inch, centimeter or millimeter)

We will give you factory price with full specification, so please leave us an inquiry to know more details about price, packaging, shipping and discount.
