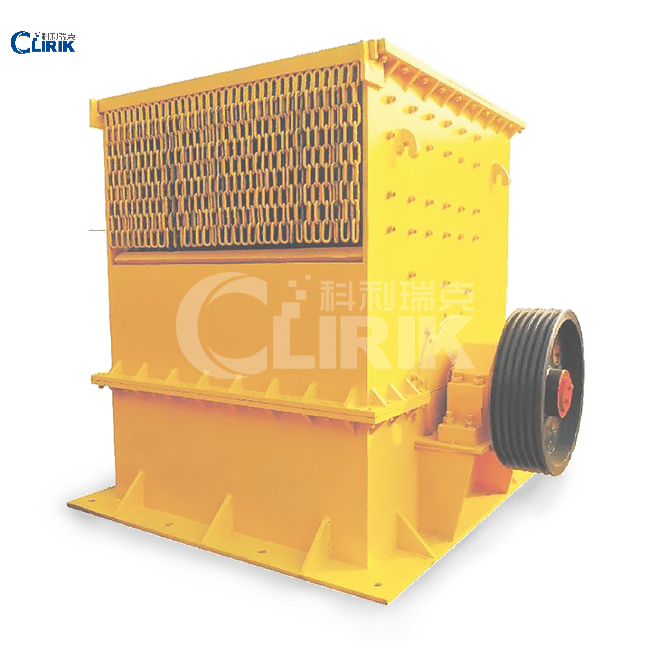

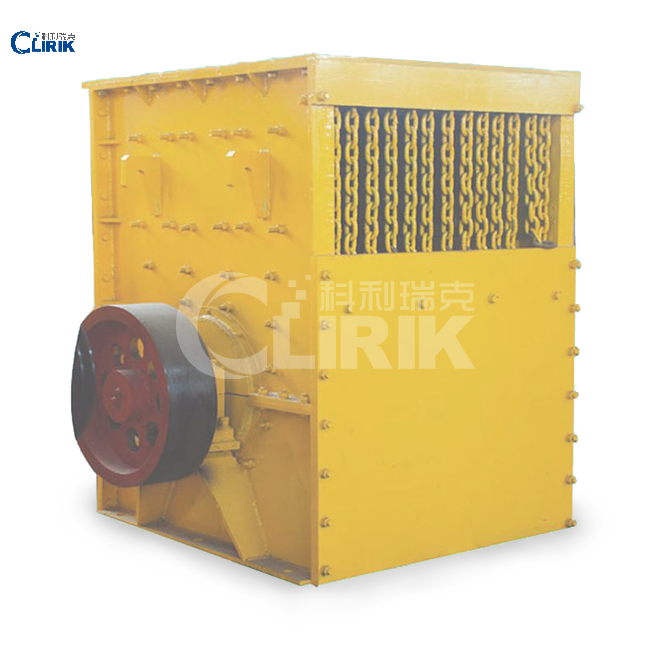

Cabinet Hammer Crusher

Processing ability: 50-120 t/h

Fineness: 120 mm

Max feeding size: ≤800 mm

Range of application: Feldspar、Mica、 Calcite、Gypsum、 Fluorite、 Limestone、 Soil、clay、 Marble、 Granite、 Pebble、 Coal...

  • +8613917147829

Product Overview

Cabinet hammer crusher with feature of large feeding space, it is very suitable for processing big raw material with size 450-1400mm to small granularity below 100mm, which are widely used for mine, cement, building material, chemical industry and so on. It is suitable for crush raw materials with compression strength not more than 200Mpa, such as limestone, rock, plaster, coal gangue etc.

1. High output and stable performance.

2. Square shank bolts are impact-resistant and wear-resistant.

3. The feeding size is large, the crushing ratio is large, and the discharging is uniform.

4. The box of the box crusher can be turned over, which is more convenient for maintenance.

5. Coarse and medium crushing can be done in one step, and the technological process is simplified.

6. The grid size is adjustable, the product particle size is controllable, and the particle shape is good.

7. The yield is high, and the granular products account for about 85%, which fully meets the requirements of use.

8. The installation of the hammer shaft of the box crusher is adjustable, and the hammer head has a long service life.

9. The hammer head, grate plate and counterattack plate are made of high wear-resistant materials, and the service life is longer.

Working principle

Cabinet hammer crusher gravity, hammers do high-speed circular motion along with rotors driven by motor.After being fed into crusher, large stones are stacking on the shelf which is particular to box crusher. Raw materials are smashed into smaller pieces by hammers. Right following the fist crushing, unqualified pieces hit against the impact plate with new fed material at a tangent to circular motion of Hammers. So once for all, material undergo two steps of crushing, from coarse to medium size then to qualified small size. Finished product are sieved through screen and discharged at a uniform particle size.

Product Parameter

Model PC600 PC800 PC1000 PC1200
Rotor speed( 600-800 650-750 650-750 600-750
Max feeding size(mm) 550 780 780 800
Finished particle size(mm) ≦50 ≦50 ≦50 ≦50
capacity (t/h) 30-50 40-80 50-100 100-160
Powder(KW) 40-55 75-90 90-110 110-132
Weight( kg) 4200 4800 6500 8300

Note: This specification is just referencing, any changes are subject to the products.
